ANALYZERS:   SPECTRUM,   LOGIC,  NETWORK, COMMUNICATION

Model Number SPECTRUM ANALYZERS GENERAL PURPOSE

Price US$

Advantest R3261A 9kHz-2.6GHz with Tracking Generator. IN STOCK. A002

   2950

Advantest R3261D 9kHz-3.6GHz with 1Hz maximum resolution. Specialized signal measurement modes including RF power. IN STOCK

   2950

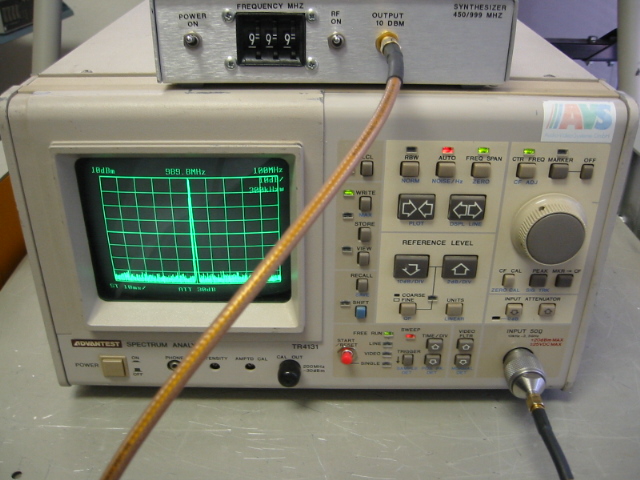

Advantest TR4131 10kHz-3.5GHz portable spectrum analyzer. GPIB, RS-232, Video out, Audio jack.  pic

  1950

HP 141T Spectrum Analyzer Mainframe. Storage mode 100% operational.  pic

    450

HP 3580A 5Hz -50kHz. 100nV to 20V amplitude, 80dB dynamic range. Opt 002  pic   Rechargeable batt. +$250.

    750

HP 3582A 0.02Hz - 25.6kHz.  Dual channel,+30dBV to -120dBV dynamic range. Freq. accuracy: 0.003%.  GPIB interface.

  1495

HP 3585A 20Hz-40MHz with 0.1Hz resolution. Dual channel, Tracking generator, 80dB dynamic range, 3Hz resolution BW. sold

   1250

HP 8555A 10MHz-18GHz RF  section pic Shown with optional display unit & IF section. Complete $1200

    650

HP 8557A 10kHz-300MHz, 70dB attenuator, -60dBm sensitivity. Add HP 182 Large screen display for only $150

     650

HP 8561A 1kHz -6.5GHz, Portable spectrum analyzer. 110Hz min resolution. GPIB, 121dBm noise floor. pic

   4500

HP 8566B 100Hz-22GHz Synthesized accuracy delivers 10Hz resolution. IN STOCK.

   3500

HP 8568B 100Hz-1.5GHz Synthesized accuracy delivers 10Hz resolution. Memory. RF SECTION only

   1850

HP 8569A 10kHz-22GHz,  Signal storage, memory, GPIB output to printer or plotter.

   3500

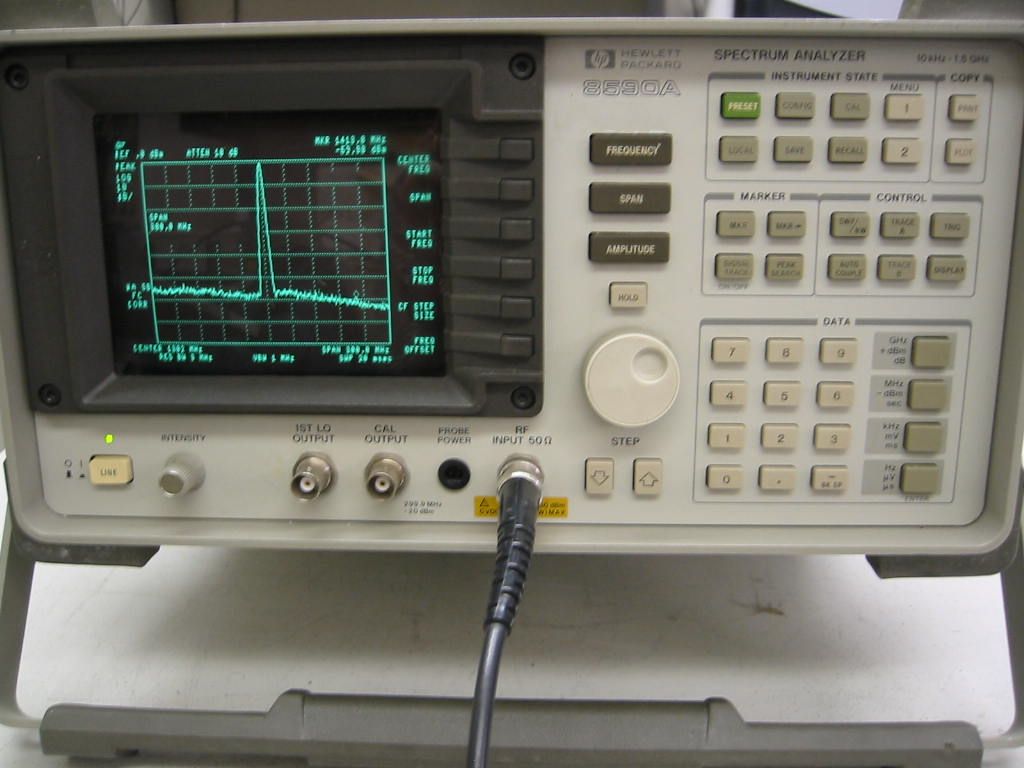

HP 8590A 10kHz -1.5GHz, Portable spectrum analyzer. 1 kHz resolution, opt 021 ( GPIB). New CRT pic  IN STOCK.

   2200

HP 8591A 10kHz -1.8GHz, Portable spectrum analyzer. 1kHz resolution, 4 digit accuracy. pic  IN STOCK.

   2950

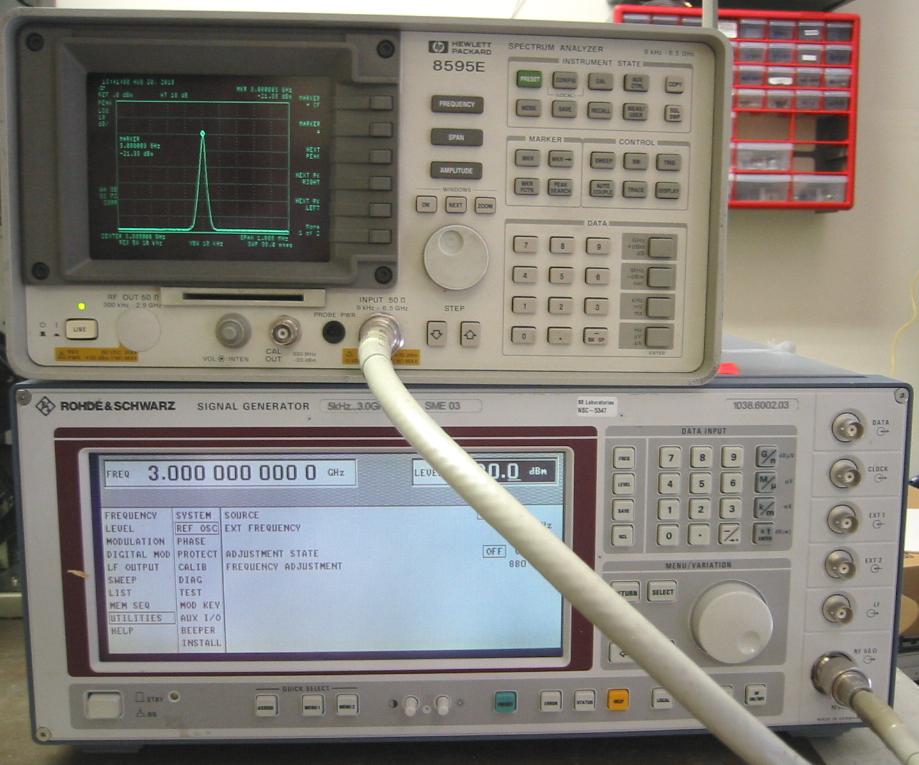

HP 8595E 9kHz -6.5GHz Spectrum analyzer. 30Hz resolution. Available options: 021, 041, 140.  pic IN STOCK.

   4950

HP 11729C Carrier-Noise test set. 10MHz-18GHz. Input signal: +7dBm to 20dBm. IN STOCK

   1500

HP 70904A RF Section for the HP 70000 series Spectrum analyzer. 100Hz-2.9GHz. IN STOCK

     650

        AUDIO SPECTRUM AND DISTORTION ANALYZERS

HP 339A Distortion Analyzer with built in Signal source. Signal range: 1mV-300V, 10Hz-110kHz. 2% accuracy, Voltmeter mode.  IN STOCK

850

HP 3580A Spectrum Analyzer. 5Hz-50kHz. 100nV to 20V amplitude, 80dB dynamic range. Opt 002  pic

850

HP 3582A Spectrum Analyzer. Dual channel, 0.02Hz- 25.6 kHz. +30dBV to -120 dBV dynamic range. Frequency spans from 1Hz to 25kHz. Frequency accuracy: 0.003%.   pic

1495

HP 8903A Audio signal analyzer. SINAD, amplitude measurements to 110kHz. Autoranging.  IN STOCK 850
TEK  AA501A Programmable Audio distortion analyzer.10Hz-100kHz. THD, THD+Noise, IMD, RMS Voltage measurements.  550

LOGIC ANALYZERS and DIGITAL SIGNAL ANALYZERS

Agilent 1670D 136 channel, 100MHz/250MHz, Deep memory logic analyzer. 1MB per channel Hard drive, Ethernet port pic  IN STOCK 2500
Agilent 1672E 68 channel, 100MHz/250MHz, Deep memory logic analyzer. 1MB per channel  Hard drive, Ethernet port  pic  IN STOCK 1200

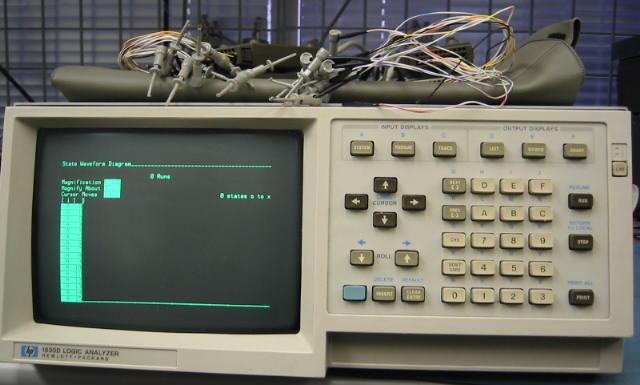

HP 1630D 100MHz Timing-25MHz State 43 channels. Glitch capture capability, 16 Timing channels and 27 state channels. simultaneously. ALL PROBES INCLUDED! 395
HP 1631D 50MHz  200MS/s  Scope & 100MHz  & 43Ch. Logic analyzer. Flexible triggering. WITH  PROBES  pic   IN STOCK 750
HP 1650A 100MHz Timing-25MHz State 80 chan. ALL PROBES INCLUDED. Menu driven user interface, Floppy  pic 550
HP 1650B 100MHz Timing-35MHz State 80 chan. ALL  PROBES INCLUDED. Menu driven user interface, floppy   pic 650
HP 1651A 100MHz Timing-25MHz State 32 chan. ALL  PROBES INCLUDED .   Menu driven user interface, Floppy  pic 495
HP 1651B 100MHz Timing-35MHz State 32 chan. ALL PROBES INCLUDED.   Menu driven user interface, Floppy  pic 550
HP 1653B 100/35MHz Timing/State 32 channels with 100MHz  DSO.  Floppy drive storage  pic  ALL PROBES INCLUDED.  IN STOCK 650
HP 1661C 500/100MHz Timing/State 102 channels ALL  PROBES INCLUDED. 8kb/chan memory. HP Mouse.  IN STOCK 995
HP 1662AS 500MHz Timing-100MHz State 68 channels &  250MHz, 1Gs/s oscilloscope. 8kb/chan. Mouse, All probes included. IN STOCK 1450
HP 1660CS 500/100MHz Timing/State 136 chan. & 250MHz, 1Gs/s oscilloscope. 8kb/chan. Mouse, ALL  PROBES INCLUDED. IN STOCK 1950
HP 16500A Logic Analyzer mainframe. Color 9" CRT, floppy,  4MB memory lets you use 16550A/16555A 250
HP 16500A 100/35MHz Timing/State 80 chan. ALL PROBES INCLUDED. Color Display, FDD,  4MB memory.  790
HP 16500A 500/100 MHz Timing/State 80 chan . ALL PROBES INCLUDED. Color, floppy, Printer port,  4MB memory  pic 895
HP 16500A Logic Analyzer-DSO .WITH  PROBES Color, FDD,  4MB memory. Price is based on configuration. 6mo. warr.  pic call
HP 16500B Logic Analyzer 500MHz /110MHz Timing/State, 68 Chan. ALL PROBES INCLUDED. 2MB memory. IN STOCK 750
HP 16500C Logic Analyzer 500MHz /110MHz Timing/State, 68 Chan. ALL PROBES INCLUDED.2MB memory. IN STOCK 950
HP 16505A Prototype Analyzer. High level language debugging in windows environment for  HP 16500C/D. IN STOCK 250
HP 16510A 100/35MHz Timing/State, 80 channels.  For HP 16500A/B/C.  150
HP 16520A 100MHz 16 channel. ALL PROBES INCLUDED.  With optional 54650A GPIB interface 595
HP 16550A 500/100 MHz Timing/State, 102 chan. ALL PROBES INCLUDED. 4K/8K per channel. For 16500A/B/C.  490
HP 16555A 500/110 MHz Timing/State, 68 chan. ALL PROBES INCLUDED. 2MB mem. WIth probes 595
HP 16555D 500/110MHz Timing/State, 68 chan. ALL PROBES INCLUDED. 2MB memory. Probes included 695
HP 54620A 16 channel. ALL PROBES INCLUDED. Automatic freq., period, hold & setup time. GPIB interface included. IN STOCK 695
TEK TLA7M2 68Ch, 2GHz timing, 100MHz state analyzer module for TLA 700 series analyzers 495
TEK TLA704 Logic analyzer system. Boards are available separately. IN STOCK 950
Tek 1241C Test probes and ROM packs only pic 250
TEKTRONIX 3002CH Logic analyzer with 20 channels at 400 MHz or 4 channels at 2GHz timing analysis. 24KB per channel. Included modules: 30HSM and 32GPD. Requires monitor. Probes & pods are available. 350
NETWORK ANALYZERS
Anritsu  54111A Scalar network analyzer, 1MHz  to 3GHz. Built in synthesized sweep source 1-3000MHz.. Detectors are available separately. 2750
HP 4195A Repair Service. From $650 call
HP 8405A Vector voltmeter 1-1000MHz, 1uV-1V input, PLL capable. Sampling amp output  adds 1GHz BW to any oscilloscope   695
HP 8505A Vector network analyzer 500kHz-1300MHz. Measure Phase, Group Delay, Gain, Attenuation, Impedance, Return Loss, S-Parameters, Reflection Coefficient, Deviation From Linear Phase and Transfer Function. sold   2500
HP 8510B Network analyzer. Option 10. pic   Eligible for Agilent trade in program for MXA & PXA analyzers.   1950
HP 8515A S parameter test set for the 8510B Network analyzer. $1000 off if purchased with 8510B. SOLD   2500
HP 8755C Scalar Network analyzer. 3 channel, 10MHz-18.5GHz. With HP182T display. IN STOCK     650
PM 1038-N10 Scalar Network Analyzer. Detectors and mainframe are available separately     950
PM 1038-D14M Scalar Network Analyzer chassi. Detectors and PM1038-N10 module are available separately     650
Wiltron 560 Scalar network analyzer, 10MHz to 40GHz. Three input channels. Detectors available   pic 650
Wiltron 54111A Scalar network analyzer, 10MHz to 110GHz. Built in synthesized sweep source 1-3000MHz.. Detectors are available 3500

AC LINE DISTURBANCE ANALYZERS

BMI 4800 AC power analyzer and data recorder. Detect virtually any type of problem with AC power. IN STOCK 650
Dranetz 606-1 600 VAC max. Detects and measures Impulse, Sag/Surge,  Slow Average.  Clock with backup records time of of the event. Automatically prints disturbance information.  Built in printer. pic 650
Dranetz 626-PA-6002 DC voltage monitoring module for Dranetz 626 power analyzer 195
Dranetz 626-PA-6003 AC voltage monitoring module for Dranetz 626 power analyzer 195
Dranetz 626-PA-6006 AC neutral line monitoring board for Dranetz 626 power analyzer 195
Dranetz 626-PA-6030 AC Graphics monitor for Dranetz 626 analyzer 295
Dranetz 808 Power demand analyzer with built in printer. Accurate record of  power consumption over time 795
Hioki 3197 Universal Power Analyzer. COMPLETE. IN STOCK 2250

SIGNAL ANALYZERS

Communication Analyzers: Protocol, LAN, Telephone, Cable

MISCELLANEOUS OTHER ANALYZERS

Agilent E4406A Communication Analyzer. Option BAC ( CDMA measurement personality ) pic 4500
Agilent 4155A Repair Service. From $950  pic call
HP 853A Spectrum analyzer mainframe. For HP 8557, HP 8558, HP 8559 modules. SOLD 650
HP 4145A Semiconductor parameter analyzer. Lifetime boot diskette warranty. IN STOCK.  Analyzer is upgraded to a floppy drive which cannot damage the boot disk. 2350
HP 4145B Semiconductor parameter analyzer. Analysis of V/I characteristics of semiconductor materials. pic with the HP 16058A. sold 3500
HP 4145B Repair Service. From $650   pic call
HP 4155A Repair Service. From $950  pic call
HP 4155B Repair Service. From $950  pic call
HP 4155C Repair Service. From $950  pic call
HP 4156A Repair Service. From $950  pic call
HP 4156A Semiconductor Parameter Analyzer. IN STOCK! call
HP 4156C Repair Service. From $950  pic call
HP 4191A Impedance analyzer. 1MHz-1GHz, DC Bias, Measures LCR   plus Phase angle, Dissipation, Admittance & Conductance. GPIB. sold 2500
HP 4194A Repair Service. From $650. call
HP 83480A Communication analyzer mainframe. Plug-ins are available separately. IN STOCK. 495
HP 8750A Storage Normalizer unit. Adds digital storage to HP 8755, 8754A, 8505A, 8410/8412B. 150
HP 8901A Modulation analyzer. Measure AM/FM mod. with 1% accuracy. Also measures freq. & RF power 150kHz-1.3GHz 750
HP 8901B Modulation analyzer. Measure AM/FM mod. with 1% accuracy. Measures freq. & power. 150kHz-1.3GHz. opt 001 750
HP 8970A Noise figure meter. Provides accurate noise measurements up to 1500MHz.IN STOCK. 950
Impulse Semi TLP Transmission Line Pulse Test System. Accurately measure ESD parameters for wafers or packaged devices.pic call
Minolta TV-2130 Color and Luminance analyzer. Analyzer any color LCD or CRT for color purity and consistency. 450
Minolta TV-2140 Color and Luminance analyzer. Analyzer any color LCD or CRT for color purity and consistency. 550
Minolta TV-2150 Color and Luminance analyzer. Analyzer any color LCD or CRT for color purity and consistency. 695
NoiseKen FVC-777 EMI Analyzer. Measure spectral density of Electromagnetic fields from 100kHz to1GHz.. Complete system! pic datasheet 1500
R&S CMT55 Radio Communication Analyzer with Optional GSM measurements mode. 0.1MHz-2000MHz, RF power, Frequency, Modulation, Modulation amplitude, SINAD, Oscilloscope, Transmitter or Receiver  test mode. picture Options CM U20, CMT-U26 1800
Solartron 1250 Frequency response analyzer. dual channel, built in signal source. 4 digit accuracy. GPIB. SOLD 2500
Tektronix DAS9200SE Digital analysis system. Boards are available separately. IN STOCK. 950

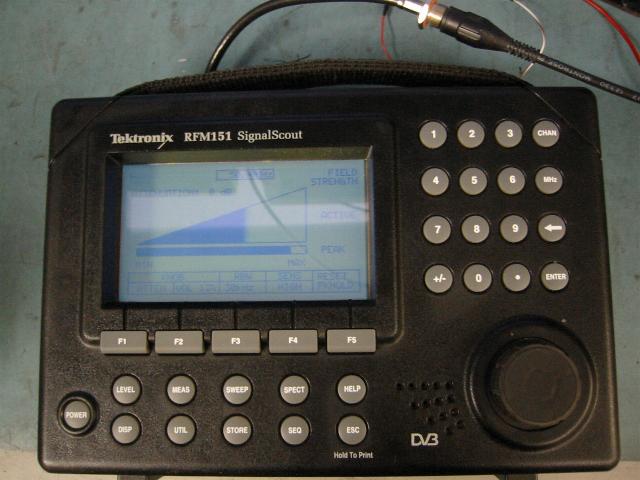

Tektronix RFM151 CATV signal analyzer. Complete signal measurments from 5MHz-1080MHz. RS-232 interface. pic 995
Tektronix TFS3031 OTDR. Single Mode Optical Time Domain Reflectometer. 1310 nm & 1550 nm single mode version. Unused with optional printer, FDD (opt 11), opt 8, Carrying case, New battery, Transit case  pic 2950
Wayne Kerr 3245 Impedance Analyzer. Can test transformers and large value inductors. Option BCI-A installed 2950
ASK AS HOW YOU TO  PARTICIPATE IN AGILENT TRADE IN PROGRAMS AND SAVE UP TO 40%  E-MAIL US

TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511

FREQUENCY COUNTERS MICROWAVE, RF, UNIVERSAL, PULSE

MODEL DESCRIPTION Price US$
BK 1803B 100MHz handheld frequency counter. Rechargable or AA batt. and AC operation. specs Pic 75
EIP 545A 18GHz , -30dB sensitivity 12 digit resolution.  Option 8 (GPIB). Up to 100 meas/sec. IN STOCK. pic 750
EIP 548A 26.5 GHz Microwave counter. Covers 10MHz to 26.5GHz frequency range. IN STOCK. 1395
EIP 548B 110 GHz Microwave counter. Option 6 included. GPIB interface.  IN STOCK. wj. 2850
EIP 575 18 GHz Source Locking Microwave counter with GPIB Interface. Opt 9 (rear input). IN STOCK. 950
Fluke 1953A Universal Counter. 100MHz, dual channel. Options: 5,14,15,16. Rack mount kit available 695
HP 5314A 100 MHz Universal Counter. Measure freq, period, ratio, time interval, totalize. 2 channels, 25mV sensitivity  Optional 001 High stability Time base ( <1 part in 10E7 pic 120
HP 5315A 100MHz Universal Programmable Counter. 7 digit resolution. Measure freq., period, ratio, time interval, totalize. 2 channels, 10mV sensitivity, x1 and x20 attenuator, adj. trigger level. Options available 150
HP 5315B 1.3GHz Universal Programmable Counter. 7 digit resolution. Period, ratio, time interval. opt 001 250
HP 5316A 1 GHz 3 channel Universal Programmable Counter. 8 digit resolution. Measure freq., period, ratio, time interval, totalize. 10mV sensitivity, x1 and x20 attenuator, adj. trigger level. Opt 001 295
HP 5316B Two channel Universal Programmable Counter. 8 digit resolution. Measure freq., period, ratio, time interval, totalize. 10mV sensitivity, x1 and x20 attenuator, adj. trigger level. IN STOCK. 350
HP 5316B 1 GHz 3 channel Universal Programmable Counter. 8 digit resolution. Measure freq., period, ratio, time interval, totalize. 10mV sensitivity, x1 and x20 attenuator, adj. trigger level. Opt 001 490
HP 5334B 100MHz 2 channel, 9 Digits of resolution. Frequency, period, Rise/Fall time, Time interval, AC/DC voltage, Pulse width, Math functions, GPIB.  pic  SOLD 295
HP 5334B Options 010 & 060. 9 Digits of resolution. Frequency, period, Rise/Fall time, Time interval, AC/DC voltage  450
HP 5335B 1.3 GHz 3 channel. Option 030 & 010 or opt 020 & 040. 9 Digits of resolution. Frequency, period, Rise/Fall time, Time interval, AC/DC voltage, Pulse width, Math functions, GPIB. pic  650
HP 5335B Option 020 & 040.  Frequency, period, Rise/Fall time, Time interval, AC/DC voltage, Pulse width, Math functions, GPIB. pic  495
HP 5340A Microwave Frequency Counter 10Hz-18GHz. -35dBm max sensitivity. Opt 001 included. NIXIE display. sold

750

HP 5345A Universal Counter 500MHz, 25mV sensitivity, 9000 measurments per sec. Opt 011 (GPIB interface).

800

HP 5355A Converter plug-in for the HP5345A counter. Extends frequency range to 40GHz

350

HP 5352B Microwave Frequency Counter 10Hz-40GHz. Opt 010 High stability timebase. SOLD

2950

HP 5370B Universal time interval counter, 20 ps single-shot LSD, +- 100 ps accuracy achievable. SOLD

1350

TEK DC504A 100Mz Universal Counter Timer. Measure Freq., Period, Time, Events & more. For TM chassis 135
TEKTRONIX DC509A 135 MHz, Dual channel Universal Counter/Timer. 8 digit Display, 5 ps max resolution, Auto trigger, Probe compensation, A and B outputs, high stability Oven Time Base (opt 1). Works in TM 500/5000 chassis only.pic 170
  OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!    E-MAIL US

  TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511

MULTIMETERS,   ELECTROMETERS,   RF VOLTMETERS,   LCR,    MEGOHM METERS, CURRENT PROBES

Model Number GENERAL PURPOSE BENCH MULTIMETERS Price US$
Agilent 34401A 6.5 digit DMM with GPIB and RS232 interface. Up to 300 readings/s.  SOLD 595
DATRON 1082 7.5 digit DMM. AC/DC, Ohm, GPIB. IN STOCK 1200
FLUKE 45 5.5 digit DMM. Simultaneously display two types of measurments, Freq, Relative, dB measurments  pic GPIB available. SOLD 350
FLUKE 77 III DMM. True RMS, Frequency, Capacitance, 10A current, Display with bargraph. 95
FLUKE 175 DMM. 13 measurment functions, True RMS, Frequency, Capacitance 150
FLUKE 8010A 3.5 Digit Bench DMM. True RMS AC, 10A current range 95
FLUKE 8050A 4.5 Digit Bench DMM dBm, Conductance, True RMS pic  Optional rechargeable battery is available 150
FLUKE 8060A 4.5 Digit DMM. True RMS AC, Frequency, dB, Relative measurments, Conductance 185
FLUKE 8600A 4.5 Digit Bench DMM AC/DC V & A, Resistance to 20MOhm 95
FLUKE 8810A 5.5 digit DMM. Options 7, 9, 521 225
FLUKE 8012A 3.5 Digit Bench DMM with milliom capabilities. Standard DMM functions plus Resistance measurment down to 0.01 Ohm 125
FLUKE 8840A 5.5 digit, System DMM. DC voltage/current  and Ohms only. add $250 for AC and GPIB opt.5/9 195
FLUKE 8842A 5.5 digit, System DMM. AC-DC voltage/current (opt 09). GPIB interface (opt 05). IN STOCK. 495
FLUKE 8506A 6.5 digit, System DMM.  with options 02A/09 (GPIB and Ohm's) 595
HP 3478A 5.5 digit resolution  DMM. DCV, ACV, Ohms, AC/DC Curent. GPIB, Auto/Manual. IN STOCK.      225
HP 3456A 6.5 digit resolution  DMM. DCV, ACV, Ohms, AC/DC Curent. GPIB, Auto/Manual. IN STOCK.      395
Keithley 175 DMM with GPIB interface. V/A/Ohms, 4.5 digit resolution, dB, Relative, Logging, Auto/Man      350
Keithley 195 5.5 digit DMM with GPIB interface. DC/AC Volts, Current and Ohms. Option 1950      195
Keithley 199 5.5 digit DMM/Scanner with GPIB interface. AC/DC Volts, Amps and Ohms. Optional scanner card is not included.      450
Keithley 480 Picoamp meter. 1nA to 1mA, 3.5 digit resolution. BNC input. IN STOCK      395
Keithley 610A Electrometer. Current measurments up to 10E-11A, Resistance up to 10E12 Ohm, Voltage up to 300VDC.      595
Keithley 619 Electrometer/DMM 5.5digit resolution, GPIB interface 6193 and 6194 input module. 10fA-2A, 10mOhm-2TOhm, 1uV-200V. 2nd channel 6194 module available for $200      795
TTi 1906 5.5 digit Programmable/Computing multimeter with Logging function. 0.0012% basic accuracy. RS-232 interface. pic 350
Tek DM502A DMM with RTD Thermometer option. Requires TM 500/5000 series chassi 250
                                 RESISTANCE, INDUCTANCE, CAPACITANCE
Boonton 72B Capacitance meter. 1 MHz test frequency. Range:  0.01pF to  2000pF.  SOLD 650
Cole-Parmer 1481-61 E-C E-C Meter & DIP cell probe.   Six measurment ranges, automatic temp compensation mode 150
GW Instek LCR-816 Precision LCR meter. 0.1% accuracy, 100 memory locations  Full description 650
Huntron 2000 Electronic component analyzer. Test any type of an electronic device in circuit by displaying it's V-I curve. Dual channel. Pulse mode   995
Hioki 2101 Megohm meter. Measure resistances up to 500 MOhm. 400V Test voltage. Remote control, Output terminals. Pass/Fail test mode with alarm. Pic 150
HP 4271B LCR meter. 1MHz test frequency, 3.5-digit display.   Dissipation measurment. optional GPIB 795
HP 4275A LCR meter. variable freq. 100Hz-10MHz, 3-digit display  L, C, R, Dissipation. GPIB interface. Pic DC Bias option included. sold 1750
HP 4140A Picoamp meter and Voltage source. Measure I, I-V and quasi-static C-V. Analog output (001), GPIB (101), 895
Instek LCR-816 Precision LCR meter. 0.1% accuracy, 100 memory locations  Full description 650
Polar 550 Milliohmmeter with short  locator. Measure resistance down to 1 mOhm or locate short circuits on any PCB board., Built-in current source. Ohmmeter 200 mOhm to 20 kOhm in 4 ranges.    295
SPECIAL VOLTAGE CURRENT  MAGNETIC FIELD RF METERS and PROBES
American Reliance AR-180T Transmission loss tester. Handheld tester with DMM function. Combines a 0dBm/-13dBm transmitter and AC voltmeter with dB scale. Olso measures DCV, and Ohms  pic 150
Amprobe A50-1  Current transformer. Extend the range of your clamp-on AC current probe to 1200A.  With carrying case. 75
BMI A600 AC current probe. 600A contunuous current capacity. For BMI power analyazers. 90
Bird 43 RF Wattmeter. 100mW-10kW, 450kHz-2700MHz (element dependent). Free 50Wt, 2MHz-30MHz element included! II 395
Clarke-Hess 263 Watt, Power Factor meter. Plus ACA & VAC. Digital. Requires current transformer 490
Fluke 90i-610S AC-DC current probe. 2 to 600A, 40Hz-400Hz. Works with any DMM or an oscilloscope. Retail price: $375 195
FW BELL 640 Incremental Gauss Meter & probe. AC/DC fields from 1 to 3000 gauss. Differential probe avaliable 490
FW BELL 1776 Clamp-on AC, DC and AC on DC Current meter. 10, 100, 1000 A range.  Peak hold. 5kHz BW, +/-1% DC or AC Accuracy. With 10A probe. pic 450
HP 400E AC voltmeter. 10 Hz to 10MHz. 1mV to 300 V Full scale. 12 ranges, proportional DC output 150
HP 428B Clamp on DC ampmeter. Measure DC currents from micro amps up to 3A. Proportional analog output. With probe. SOLD 450
HP 432A Power Meter. RF power measurments to 18.5GHz. Sensors & cable are available separately.  SOLD 250
HP 435B Power Meter. RF power measurments to 40GHz. Sensors & cable available separately.   pic 150
HP 436A RF Power Meter with GPIB (opt. 022).  90 day warranty.   Eligible for Agilent trade-in program to upgrade to EMP series. 250
HP 437B RF Power Meter. RF power measurments to 40GHz. GPIB, autorange, relative measurments. SOLD 395
HP 438A RF Power Meter. Dual channel, OPT 002 (rear connectors) RF power measurments to 40GHz. GPIB, autorange. 495
HP 3400A True RMS AC Voltmeter. 10Hz -10MHz, 1mV to 300V in 12 ranges. DC output. A001 350
HP 5004A Signature Analyzer Digital circuit troubleshooting tool lets you identify defective boards quickly without technical help. With leads. 195
HP 5005B Signature Analyzer/Voltmeter/Frequency Counter/Ohm meter in one compact unit. Pic 450
HP 5006A Signature Analyzer. Digital circuit troubleshooting tool lets you identify defective boards quickly without technical help. GPIB interface (option 040) 250
HP 8405A Vector voltmeter. 1-1000MHz range, 1uV-1V input, PLL capab.Also used as sampling amplifier. Pic 695
Leader LMV-181A AC Millivoltmeter. 100uV-300V sensitivity, 5Hz-1MHz, dBV, dBM, V scales. IN STOCK. 150
Leader LDM-170 Distortion/SINAD Meter with Voltmeter function. 1mV-300V input, 20Hz-20kHz. Filtering function 350
Rhode Schwartz UPSF Video noise meter. 40 MHz BW, High resolution, filter functions. IN STOCK. 390
Rhode Schwartz UPSF2 Video noise meter with UPSF2E2 module. 40 MHz BW, Autoranging, High resolution, too many functions to list 690
VEB RFT PSI 202 Sound level meter. Impulse, Fast, Slow response. 17 to 140dB, 20Hz to 40kHz. Vibration analisys (accelerometer required). Filter port allow narrow band measurments.  Full specs 290
Yokogawa 321345A Insulation tester. Measure up to 2000 MOhm, 1000V test voltage.  Carrying case   pic 190
Yokogawa 2404-15 Insulation tester Megohm meter.Up to 2000 MOhm, 300VAC test voltage, Handcrank generator, no batt or AC power needed to do the testing. 2.9lb, Dim: 7"x4x4.  Carrying case  pic 190
Wavetek 8531 RF Power meter. Measure power up to 26GHz. GPIB, Analog and digital display. W/o sensor 250
OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!   E-MAIL US

                         TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511


GENERATORS:   FUNCTION,   PULSE,    RF SIGNAL,   VIDEO,   DATA

MODEL

FUNCTION GENERATORS Price US$
Agilent 33120A Programmable generator.  15MHz standard functions plus arbitrary waveforms. RS-232 & GPIB. NIB unit is available for $1250 850
BK Precision 3017A 2MHz Sweep Function Generator. Sine, Triangular, Square wave waveforms. 20V p-pk output into open circuit. 150
HP 3312A 12MHz Sweep/Function Generator. Internal  AM/FM modulation, dual outputs, Variable symmetry, Phase control 350
HP 3324A 21MHz Synthesized Programmable Sweep/Function Generator.1mHz to 21MHz @ +/-5PPM. Pic 725
HP 3325A 21 MHz Synthesized Programmable Sweep/Function , 1 mV to 10 V. IN STOCK.  Option 001 available 550
HP 3325A 21 MHz  Sweep/Function generator. Opt 001 (High stability). Output: 1 mV to 10 V into 50 Ohm load   750
HP 3325B 21MHz Synthesized Function generator. Programmable Sweep, uHz resolution, 1 mV-10 V. IN STOCK. 850
HP 8116A 50MHz Pulse/Function generator. 3 digit resolution for frequency and voltage setting.  Counted burst mode. Newest s/n 1350
HP 8165A 50MHz Pulse Function Generator: 1.000 mHz to 50.00 MHz. Sine, Square, Triangle, Pulse, Ramp,  Modes: CW, VCO, trigger, gate, AM/FM modulation inputs and counted burst. Optional Sweep (opt 002), Rear outputs opt 003. 1250
HP 8904A Waveform synthesizer. Opt 005. DC-600kHz, 0.1Hz resolution, 3 1/2 digit amplitude accuracy. IN STOCK. 650
HP 8904A Waveform synthesizer. Opt. 001, 002. FM and Stereo Modulation, 2nd output channel, DTMF sequences. IN STOCK. 1450
Stanford Research DS345 30MHz Synthesized Function/Arbitrary/ /Sweep generator. GPIB (opt 001). 1 µHz to 30.2 MHz, 1 µHz   resolution. Sine, square, ramp, triangle and noise, AM/FM/Burst/Phase.  Info 1195
Topward TFG 4613 12 MHz function generator, Sine, Square, Triangular, Pulse.  AM/FM/Sweep functions, dual output, Variable symmetry. Clone of the HP 3312A Pic 185
Tektronix CFG253 3MHz sweep/function generator with pulse function and 20dB attenuator. SOLD 250
Tenma 72-7210 5MHz Sweep-Function generator with frequency counter. 1:1000 Sweep control (10mS-5sec), Pulse function, 20dB attenuator, DC offset. Measure frequency up to 50MHz with internal counter.  Info

250

Wavetek 22 11 MHz  Frequency stabilized Sweep/Function Generator. Frequency accuracy is 0.09% over its 100 Hz to 11 MHz. LCD display, Lin/LOg sweep, 20V p-p, 6 functions, small size  Full specifications        450
Wavetek 131 2MHz Function Gen. with Freq. control by ext.voltage, 50/600Ohm output, -60dB to +10dB    150
Wavetek 148A 20MHz Function/Pulse/Sweep generator with AM/FM/PM modulation modes. 30V pk-pk output, 80db attenuator.  SOLD

395

Wavetek 180 2MHz Function Gen. with Sweep control. Standard waveforms plus var. symmentry     150
Wavetek 186 Phase lock generator. 0.0001Hz to 5MHz, phase lock to external frequency. Rack mount case. Pic     550
Wavetek 275 Function-Arbitrary waveform generator. 10mHz-12MHz,  Record length 8192 points (opt 4)     795
Wavetek 288 20MHz Synthesized Function Generator, 30V p-p output, FM/AM/Sweep/Phase Angle.     495

RF and  MICROWAVE SIGNAL GENERATORS

Eaton 384M 1MHz - 4GHz., Synthesized signal generator , +18.5dBm max. power, Digital sweep, FSK/ FM/ AM/Phase modulation. 1Hz max resolution. PC programmable. With optional Eaton 255 modulator.  Other plug-ins avail. Pic 1595
HP 4 Tone Gen. 800-900MHz, 0-30dBm output, 10kHz & 0.1dBm set point resolution, CW only.  Pic 450
HP 8350A Sweep oscillator mainframe. Works with HP86000 series plug-ins with HP11869A adapter (available separately) 595
HP 8350B Sweep oscillator mainframe. Works with HP86000 series plug-ins with HP11869A adapter (available separately) 695
HP 8616A Microwave signal generator. 1.8-4.5GHz, 10mW max output (3mW>3GHz). SOLD 395
HP 8656B Synthesized signal generator 0.1-990 MHz.  -127dBm to +13dBm output. Opt.2  pic 950
HP 8657A Synthesized signal generator 0.1-1047 MHz. From -127dBm to +13dBm output. opt 001 . Pic  IN STOCK. 1150
HP 8657B Synthesized signal generator 0.1-2060 MHz. From -127dBm to +13dBm output. IN STOCK. 1950
HP 8620C RF Sweep generator. Accepts  plug-ins, that cover 10MHz to 22GHz range. 862XX plug-ins are listed below.   pic 495
HP 83525A Sweep oscillator plug-in. 10MHz-8.4GHz . Late serial number. IN STOCK. 1500
HP 83570A Sweep oscillator plug-in.  18GHz-26.5GHz. For HP 8350A/B sweep oscillator. 1200
HP 86220A Sweep oscillator plug-in. Frequency range: 10MHz  to 1.3 GHz.. 13dBm max. output 395
HP 86222B Sweep oscillator plug-in. Frequency range: 10MHz  to 2.4GHz.. 13dBm max. output. 495
HP 86222B-H07 Sweep oscillator plug-in. Frequency range: 10MHz  to 2.5GHz.. >10dBm output. SOLD 595
HP 86240C Sweep Oscillator Plug-in. 3.6 to 8.6 GHz., +20dBm For HP8620 &  HP8350A/B with adapter 400
HP 86241A Sweep Oscillator Plug-in. 3.2 to 6.5 GHz, +8 dBm MAX level output, EXT. AM/FM mod. 350
HP 86242D Sweep Oscillator Plug-in. 5.9 to 9 GHz, 10 mV MAX LEVEL OUTPUT. For HP 8620 350
HP 86260A Sweep Oscillator Plug-in. 12.4 to 18.0 GHz, 10 mW MAX level output. Opt 001 495
HP 86290B 2-18 GHz Sweeper Plug-in . Sweep or CW mode. 10 dBm max leveled output; Power variation: +/-0.9 dB internally leveled. pic 950
HP 86602A Sweep Oscillator Plug-in. 1 to 1300MHz. For HP 8660 Generator 750
Wavetek 955 Signal source 7.5-12.4 GHz,  +10dBm, +/-0.1dB flatness, 25dB control range, Long term stability: 0.009%, Harmnonics: <-20dBc, Spurios noise: -55dBc. internal AM/FM modulation, Sweep or CW. External power leveling and Phase lock  795
Wavetek 1084 3500-4500 MHz Sweep/CW generator with digital readouts.+13dBm to -60dBm. IN STOCK. 450

PULSE GENERATORS   DATA  GENERATORS   SURGE GENERATORS

Bio-Rad Purewave 760 Switcher for Pulsed DNA electrophoresis. Switches up to760VDC at programmable time intervals from 0.1-99,999sec. pic 295
Colby Instruments CPLD Programmable delay line 10pS to100pS. GPIB interface. Optional rack-mount kit included. 950
ELGEN-1000 DC-2MHz, 170V p-pk output. 10mA max. High voltage pulse generator or high voltage sinewave generator. 1950
HP 8007B 100MHz, max repetition rate. Rise/Fall time <2nS-250uS, DC offset, TTL, ECL, pos/neg output     350
HP 8011A 20MHz,  Period: 50ns to 10s Pulse width: 25ns to 8 100ms. Pulse burst option 0-9999 pulse per cycle  + $100.     350
HP 8013B 50MHz. Adjustable rise & fall time time (5nS min).  DC offeset. 395
HP 8015A 50MHz. Two outputs with independent amplitude control, adjustable transition times. 1-9999 pulses burst option 395
HP 8018A 50MHz Serial Data/PRBS Generator, 2048 bit, dual channel memory, Variable word and pattern lenght, TTL, ECL, CMOS compatible, Programmable, prbs and mixed data.   HPIB interface. 250
HP 8082A 250MHz. Two outputs with independent amplitude control. Adjustable transition time 3nS minimum. 850
HP 8110A 150MHz , With two HP 81103A output modules, 1.8nS transition time, 10V into 50Ohm. GPIB interface SOLD 2995
HP 8112A 50MHz programmable pulse generator. Burts mode, adjustable Rise/Fall time, +/- 10V output.  SOLD  pic 1295
HP 8160A 50MHz programmable pulse gen. 3nS Rise/Fall, 10V into 50Ohm. Optional 2nd output pic sold 1500
HP 8161A 100MHz programmable pulse gen. 3nS Rise/Fall, 10V into 50Ohm. With optional 2nd output (020). SOLD 1950
HP 8175A Digital data generator. 32 TTL/CMOS channels. All pods and flying lead probes included. option 005  pic 1495
Interface Technology RS-690 250MHz digital word generator. 64 channels, up to 16kB of data per chan. Min pulse width 4nS. Options included: Floppy disk, ECL pods, Variable current data pod (50Ohm) pic  pic 1500
Datapulse 201 Data-Pulse generator. Generate 16 bit serial data streams up to 10 MHz. Adjustable amplitude 0-10V and offset: +/-10V. Manual or Auto trigger. Sync clock outputs. requires external drive signal sinewave ( 1Vrms) or squarewave ( +/-0.5V). pic 150
LeCroy 9210 Pulse generator mainframe.  IN STOCK. Can house two totally independent pulse generator plug-ins     1750
LeCroy 9211 Pulse generator plug-in. 250MHz repetition rate. IN STOCK. 300pS rise time, 5V into 50Ohm.      1650
LeCroy 9214 Pulse generator plug-in. 300MHz repetition rate. 300pS rise time, 5V into 50Ohm.  IN STOCK     1850
Noisecom NC9656 Programmable noise generator. 500MHz-9GHz, 0dBm max output, 80dB attenuator with 1 dB step resolution, GPIB interface, Filter function.     850
TEK PG501 50 MHz Pulse generator. <20nS to 200mS period, <10nS to 100mS pulse duration . +/-5V output into 50 ohms, Square wave mode, <3nS Rise time, Ext. trigger In/Out  Dual adjustable complim. outputs. pic 190
TEK PG502 10Hz-250MHz Pulse generator, 1nS rise time, +/-5V output (5V p-pk max). Single pulse mode. Pic 250
TEK PG505 High voltage pulse generator. 1MHz repetition  rate. 80V pk-pk into 4kOhm, Variable Transitions 350
TEK PG508 Dual output pulse generator. 50MHz repetition rate, adjustable transition time, 20V p-pk max. sold 295
TEK TG501 Time mark generator for calibrating any oscilloscope time base. Optional 5MHz time base. 395
Wavetek 680-3 100 MHz Pulse Generator Modules. Add channels to your Wavetek 869 modular pulse gen. 190
Wavetek EH2000 200MHz max repetition rate. 1nS rise time,  5V p-pk into 50Ohms. Fully programmable 850

SINEWAVE GENERATORS

American Reliance AR-180T Transmission loss tester  with DMM function. Combines a 0dBm/-13dBm transmitter and AC voltmeter with dB scale. Olso measures DCV, and Ohms  pic 150
HP 204D Sinewave oscillator 0.1Hz-1.2MHz,  low distortion 600Ohm output. 195
HP 209A Sinewave/Square wave oscillator 2Hz-2MHz, low distortion, 600Ohm output, dual output pic SOLD 175
HP 651A Sinewave oscillator 10Hz-10MHz,  low distortion. 60dB attenuator. Newer serial number 175
HP 3335A Synthesized/Level Generator 200Hz-80MHz. 0.1dB output accuracy, Sweep, GPIB.  SOLD 1190
TEKTRONIX SG502 Oscillator, 5Hz to 500kHz Sine and Square Waves, Low distortion Sine Wave, 5 V RMS, 600Ohm output impedance, 70dB attenuator with 10dB steps.

195

Tektronix SG503 250 MHz leveled sinewave generator with Freq. counter.  Requires TM 500 chassi. Newer s/n     495
Tektronix SG504 1024 MHz sinewave generator w/o output head.   Requires TM 500 chassi.      395

VIDEO,  NOISE and  SPECIAL  GENERATORS

Andy Gish ESD255 ESD Generator. 25kV, Event counter, Manual or variable repetition rate, External trigger input. Pic  Specs 1950
Fluke PM5418TD Video Signal Generator PAL/SECAM/NTSC, 15 Sound formats, Baseband or RF out. Pic 1450
HP 59308A GPIB timing generator. Test GPIB interface timing accuracy.   IN STOCK 490
HP 16520A Data pattern generator. Cables included!. Probes are available separately. 290
HP 16521A Data pattern generator. Cables included! Probes are available separately. IN STOCK. 290
HP 16522A Data pattern Vector generator for HP 16500 series analyzers.   PROBES & PODS INCLUDED. Add $300 for HP16500B 1250
G-R 1390B Random noise generator, 3  ranges: 20kHz, 500kHz, 5MHz, 5V max output, 5 decades of attenuation. Pink noise  Pic 195
Leader LCG-399 PAL Video Signal Generator. Selectable audio modulation formats, Composite video, Full channel coverage. IN STOCK. 395
Leader LCG-400 Video Signal Generator NTSC. Sound, Variable Sync option, Gen-Lock, Optional Multiburst module, TV modulator  Pic 495
Leader LCG-409 Video Signal Generator NTSC. Composite & Channels 2 to 86, Sound, RGB, Battery/AC pwr. pic 350
Philips PM5418TD Video Signal Generator PAL/SECAM/NTSC, 15 Sound formats, Baseband or RF out. IN STOCK.  Pic 1450
Quantum Data 801GF Video generator. VGA, MAC, SUN,  RGB. 285MHz pixel timing. 100 built in patterns, 300 custom patterns. GPIB, RS-232C 350
Quantum Data 801GX Video generator. PAL/NTSC, VGA, MAC, SUN, S-Video, RGB. 100 built in patterns, 300 custom patterns. GPIB, RS-232C 595
Quantum Data 8701E 285 MHz analog video generator. Supports all forms of EIA composite sync. With. ACV 285 unit 350
Schaffner NSG222 Interference generator. For use with Schaffner mainframe chassi only 350
Tektronix  TSG130 Miltiformat video test signal generator with audio outputs. NTSC format.  IN STOCK 395
Tektronix  TSG131A Miltiformat video test generator with audio outputs.Option 003. PAL format.  IN STOCK 695
Tektronix  TSG170 Video test generator. 15 test patterns. Digital genlock. NTSC format.  IN STOCK 950
Tek TSG 170 Video test generator.  15 test patterns. Digital genlock. NTSC format.  IN STOCK 950
Tek TSG601 Video generator for serial digital format. Audio channels. Built in 50m coax cable simulator. Handheld size. Soft case included 1495
Tektronix  1410 Video test generator with  SPG2, TSG7, TSP1,  TSG3,   TSG5, TSG6 .  IN STOCK 595
Tektronix  1411 Video test generator with  SPG12, TSG11, TSP11,   TSG13,  TSG15, TSG16.  IN STOCK 595
Tektronix  1910 Video test generator/ Inserter. Studio, transmitter abd transmission test signals. 10-Bit signal generation. Opt 1 avail.  Pic 995
Tek VITS 100 Video test generator/ Inserter. NTC 7, FCC, and VIR Signals. FCC composite, multiburst   IN STOCK 695
Tek VITS100 Video test generator/ Inserter. NTC 7, FCC, and VIR Signals. FCC composite, multiburst   IN STOCK 695
Tek VITS 200 Generator/Inserter NTC7, FCC, VIRS, and GCR Signals Cable Multiburst and Sweep Signals. IN STOCK 795
Tek VITS200 Generator/Inserter NTC7, FCC, VIRS, and GCR Signals Cable Multiburst and Sweep Signals. IN STOCK 795
Velonex 510 Surge Transient generator. Connects directly to AC mains and generates up to 2.5kV transients.  IN STOCK 4500
OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!   E-MAIL US

                       TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511

MISCELLANEOUS  EQUIPMENT

MODEL AMPLIFIERS Price US$
ENI 310L Power amplifier. 250kHz-110MHz, 10 Wt, 50dB gain.  IN STOCK 1795
ENI A300 Power amplifier. 500kHz-35MHz, 300Wt, 55dB gain, up to 175V output.  IN STOCK.  Pic 4950
HP 5087A Distribution Amplifier. OPT 033. One 10MHz input, 12 of 10MHz outputs.  IN STOCK 850
Hughes 1077H11 TWT Amplifier 18  to 26.5 GHz,  1 Watt output. Full specs are available.  IN STOCK call
Hughes 1277H02F000 TWT Amplifier 4-8 GHz, C Band, 20 Watt output. Full specs available upon request.  pic 2500
Hughes 8000H TWT Amplifier 3-5 GHz,  20 Watt output. Fulls specs are available upon request.  1950
Hughes 8000H TWT Amplifier 10-15GHz,  40 Watt output. Fulls specs are available upon request.   3750
Hughes 8010H15 TWT Amplifier 8-18 GHz,  10 Watt output. Fulls specs are available upon request.  pic  SOLD 4500
Kalmus 166AP Pulse amplifier. 400-450MHz, 300Wt output power. Linear gain.

1950

Kepco BOP36-6M Power amplifier Bipolar power supply. +/-36V, +/-6A. Works as a power op amp to driver loads up to 210Wt.

  995

Miteq AFS2-00010600-25-S6-4 6GHz Microwave amplifier. 0.1-6GHz rated, 11GHz tested. 20dB gain, +10dBm output. NF 2dB<6GHz. New units. Info 295
TEKTRONIX  AM502 Differential amplifier with Hi/Lo pass filter.Gain from 1 to x100,000 in 5 decades. 1MHz BW, CMRR 100dB. sold

  395

TEKTRONIX M41A2 Thermocouple amplifier. For J type T/C. 10 input channels. Cold junction compensation.

    50

ATTENUATORS

HP 8492A Attenuator with APC-7 connector. Available values: 3,6,10,20db        95
Agilent 8493A Fixed value DC-12.5GHz attenuator. SMA connectors. Available values: 3,6,10,20,30dB        45
Agilent 8494G Programmable step attenuator, DC-4 GHz, 11dB, SMA connectors. 5VDC. opt 002, 011      595
Agilent 8495G Programmable step attenuator, DC-4 GHz, 70dB, SMA connectors. 5VDC opt 002, 011      495
Agilent 8495H Programmable step attenuator, DC-18 GHz, 70dB, SMA connectors. Save $400!      650
Anritsu 41KA-6 Attenuator 6 dB, 2Wt, DC-18GHz, NEW!                 QIV        45
Anritsu 41KA-20 Attenuator 20dB, 2Wt, DC-18GHz, NEW! IN STOCK        65
HP 11583A Attenuator set of four HP8492A 3,6,10,20 dB attenuators. DC-18GHz, APC-7 connector      295
HP 11713A Attenuator control unit with CABLES. Two attenuator control cables included. SOLD.      495
HP 33322H Attenuator DC-18GHz, 110dB max, 10 dB step. FREE CONTROL CABLE INCLUDED  ($186 value)      595
HP 350D DC-1MHz, 110dB step attenuator with 1dB step. Banana jack input & output. sold      195
HP 8120-2703 Control cable for the Agilent 11713A attenuator driver unit. NEW! Agilent's price: $186.00. Pic      105
JFW 50DR-46-SMA Manual variable step attenuator. 50dB in 1dB steps. DC-2GHz, 2Wt, SMA connectors. List price: $356      195
Narda 4779-6 6dB Attenuator, DC-18GHz, SMA (m/f), 2Wt . IN STOCK                 QVI        39
Wiltron 4612K Programmable step attenuator DC-40GHz, 70dB.  IN STOCK      850
Weinschel 3T-10 10dB Attenuator. DC-12.4GHz, SMA (f/m). NEW! IN STOCK              QIII        55
Weinschel 3T-20 20dB Attenuator. DC-12.4GHz, SMA (f/m). NEW!  IN STOCK            QII        55
Weinschel 33-20-12 3dB, 50Wt Attenuator. DC to 8.5GHz, 3.5mm connectors. IN STOCK      195
Weinschel 33-3-12 20dB, 50Wt Attenuator. DC to 8.5GHz, 3.5mm connectors. IN STOCK      195

DATA ACQUISITION and CONTROL

Agilent 10833A GPIB/IEEE-488 Cable. MSRP $95. Multiple quantity discount. 35
Agilent 10833B GPIB/IEEE-488 Cable, 2 meter length (6ft). Multiple quantity discount. 35
Agilent 10833C GPIB/IEEE-488 Cable, 4 meter length (13ft). Multiple quantity discount. 40
Agilent N2262A Multiplexer card for Agilent data acquisition systems. IN STOCK. Connector block included 590
Agilent N2266A Multiplexer board for Agilent data acquisition systems. IN STOCK. Connector block included 390
Agilent 82340A GPIB-16 bit board for PC. 190
HP E1326A DMM card for the HP E1301A/B systems. IN STOCK 275
HP E1330B Multiplexer card for VXI systems with terminal blocks. 170
HP E1352A Multiplexer card for VXI systems; E1301B, E1302A 295
HP E1364A 16 Channel Form C switch. For VXI systems 150
HP 85A Computer with built in display and printer. With HP 82937A ( HPIB interface) 390
HP 3488A Switch/Control unit with GPIB interface. Up to 50 channels. DC to 26.5GHz. Cards are available separately see list below 150
HP 3497A Data Aquisition unit with OPT. 001. IN STOCK. See list of available  boards below. 395
HP 34907A Multifunction I/O module for the HP 34970A. 195
HP 37203A HPIB Range extender. Operate GPIB or IEEE-488 instruments at greater distances. Optional fiber optic interface 195
HP 37203A HPIB Range extender. Operate GPIB or IEEE-488 instruments at greater distances. Optional fiber optic interface 195
HP 44421A Data acquisition input  multiplexer board (20 channel) with terminal block. 120
HP 44422A T/C interface card with terminal block for HP3497 data acquisition system 75
HP 44425A Digital output board with terminal block. 85
HP 44428A Actuator interface card with terminal block for HP3497 data acquisition system 95
HP 44431A High voltage actuator interface card with terminal block for HP3497 data acquisition system 95
HP 44470A Multiplexer card with connector block  for HP 3488A switch unit. ii 190
HP 44471A Multiplexer card with connector block  for HP 3488A switch unit. iv 190
HP 44472A Coaxial multiplexer card for the HP3488A switch unit. 190
HP 44473A Relay multiplexer card for the HP3488A switch unit. New in a box. iv 190
HP 44474A Digital I/O card for the HP3488A switch unit. vii 190
HP 44476A RF switch card for the HP3488A switch unit. RELAYS NOT INCLUDED. NEW 190
HP 44478B RF multiplexer switch card for the HP3488A switch unit. ii 95
HP 44703B Memory card for the HP3852A DAQ unit. 1MB total memory 275
HP 44705F Relay multiplexer card for the HP3852A and 3853A. Newer serial number 275
HP 44710A T/C interface card. 20 channels. for the HP3852A and 3853A. Newer serial number 650
HP 44711A High speed FET multiplexer for the HP3852A/3853A. IN STOCK. Connector block not included. 175
HP 44724A 16 channel digital output card for the HP3852A and 3853A. IN STOCK. Newer serial number 195
HP 44729A 20 Channel multiplexer card for the HP3852A, 3853A. IN STOCK. Newer serial number 295
HP 44788A HPIB controller for HP 3582A and HP 3583A 295
HP 59301A ASCII to Parallel converter. Permits control of many older HP instruments via GPIB interface 125
HP 59303A D/A converter ith GPIB interface. +/-10V range. sold 195
HP 59306A Relay actuator. Control six form-C relays by  pushbuttons or via GPIB interface 295
HP 59307A VHF Switch. Dual Single pole 4 throw. GPIB or pushbutton.  DC-500MHz, 50 Ohm  250
HP 59501A Power supply programmer. Control power supplies with analog programming capabilities with a PC via GPIB interface. Isolated.  Range +/-1V or +/-10V. 1mV/10mV resolution. LabView supported. Info 125
HP 59501B Power supply programmer. Control power supplies with analog programming capabilities with a PC via GPIB interface. Isolated.  Range +/-1V or +/-10V. 1mV/10mV resolution. LabView supported. 125
HP 61020A Dual VHF Multiplexer, 300MHz BW, Two of 4 single ended with 1 single-ended common. 85
Keithley AIM7 T/C Interface board for the Keithley 575 system 250
Keithley 706 Scanner/Switch unit. 10 slot for Keithley 7000 series control cards. IN STOCK 295
Keithley 7001 Scanner/Switch unit. 2 slot for Keithley 7000 series control cards. IN STOCK 295
Keithley 7002 Switch/Control unit. 10 slot with light pen capability for touch control of switch matrix. SOLD 595
Keithley 7011C Multiplexer card for the Keithley 7001, 7002 switch control unit. ii. IN STOCK 750
Keithley 7052 Relay matrix card 4x5 form factor. For Keithley 700, 7000 series mainframes 95
Keithley 7054 High voltage Relay matrix. For Keithley 705, 706  mainframes 150
Keithley 7055 Relay matrix card  for Keithley 705, 706  mainframes 95
Keithley 7062 RF Relay switching card. For Keithley 705, 706  mainframes 150
Keithley 7071-4 Switching matrix card for Keithley 707. Dual 4x12 matrix with 5MHz BW.  350
Lauterbach LA-7708 Power Debug Interface/USB2, JTAG-ARM11. With Interface cable: LA-7765. IN STOCK 850
NI BNC-2080 BNC interface board. p/n 181630 175
NI GPIB-PCI National Instruments GPIB board for a PC with a PCI-slot. Fast data rate. Save $400. SOLD 295
NI GPIB-TNT National Instruments GPIB board for a PC. 16 bit.  For any PC with ISA slot 75
NI 776857 GPIB interface with PCMCIA card. New in a box! National Instruments. 220
NI GPIB-PCMCIA GPIB interface with PCMCIA card. New in a box! National Instruments p/n 776857 220
NI SB-GPIB-TNT National Instruments GPIB board for SB bus 395
NI SCXI-1163R 32 channel optoislated solid state relay module 395
NI SCXI-1102B 32 channel amplifier board. 200Hz BW. 333 kS/s maximum sampling rate 950
NI SB-GPIB-TNT National Instruments GPIB board for SB bus 150
NI Developers Suite 2003 National Instruments Professional Test Edition with Labview. Quaterly CD set. Sealed package. 275
National Instruments 500908M-040   National Instruments Professional Test Edition with Labview 2003 edition. Quaterly CD set. Sealed package. 275
NI Developers Suite 2004 National Instruments Professional Test Edition with Labview. Quaterly CD set. Sealed package. 375
National Instruments 500908-040C National Instruments Professional Test Edition with Labview 2004 edition. Quaterly CD set. Sealed package. 375
NI VXI-MXI-2 National Instruments VXI CPU card. IN STOCK 350
NI 183105A-01 National Instruments VXI CPU card. IN STOCK 350
Spectracom 8160a Standard Frequency receiver with 10 MHz output. 950
Symmetricom 58540A Time and frequency GPS receiver & antenna. 10MHz and 1 PPS outputs. RS-232 data interface. TCXO timebase. Pic sold 1200
Tektronix SI5010 Programmable scanner for the TEK TM5000 series chassis. 16 channels. BNC connector 150

TEMPERATURE, PRESSURE, HUMIDITY, LIGHT, SOUND

Azonix A1011 Precision RTD thermometer. Three input channels. With one RTD probe. Complete model number:  A1011-XX-XX-RT41 750
Biotek DPM-2 Universal pressure meter. Measures in: mmHg, cmH2O, inH2O, -13.5 to100psi. Proportional analog output. sold 185
Bruel & Kjaer JJ2614 Connector adapter with accesories as pictured. Picture 125
Bruel & Kjaer 2230 Sound level meter. Professional quality hand-held instrument. Microphone is not included 250
Dickson THDx Temperature/Humidity/Dew point recorder. 7 day chart. Digital display, Min/Max. With extra pens Picture. IN STOCK 195
EFD 2000XL Digital Fluid Dispenser. 3 digit resolution, stores 8 settings. Foot pedal incl. More Info  Pic   350
Fluke 2030A Programmable printer for use with Fluke PTI equipped instruments. Attach up to  9 instruments simult. Picture   200
Fluke Y2003 Thermocople calibrator. AC or Battery operation   350
Honeywell 612X9 Circular Humidity & Temperature recorder. 1 Week chart, no AC or Batteries required  Picture   190
Kaye X1360 Themperature validation system. Used as a high precsision temperature calbration standard 1250
Metrosonic CL304 Acoustical calibrator. 102dB @ 1000Hz. For testing for ANSI S1.40-1984 standard    190
Omega DP462T Multichannel thermometer. Six T/C inputs. Current list price $348.  Info    125
Omega HH611PL4C T/C Thermometer with paper printout, 4 channel, data logging, Type "K" T/C. AA batt. power.  Picture    195
Omega CT485B Circular Humidity & Temperature recorder. With Humidity probe and spare charts pack.  Pic   495
Sensym ST2500G1 Pressure transducer, 0 to 500 psi. Linear output 1 to 6 VDC,  0.5% Accy, Power req. 12-30 VDC, SS construction compatible with most hostile environments. Proof pressure: 600 psi, Burst pressure: 2500 psi. New units in original packaging. Retail price $200.  pic 50
Signet P82140-3 Resistivity Controller, Panel mount, 1/2 DIN size. Never used    170

HIPOT, SAFETY, GROUND, DIELECTRIC WITHSTANDING TESTERS

Associated Research 4045A AC-DC hipot tester. 5kV max test voltage. With test leads!  Acceptable for UL compliance testin. IN STOCK 595
Associated Research 5060AT DC hipot and Ground tester. 0-6kV DC, 5mA max.  Acceptable for UL compliance testing. 525
Compliance Design ESD2000 25kV Charge pump for ESD compliance testing  Pic PROBES NOT INCLUDED     390
Compliance Design ESD2000i Air and Contact discharge probe set for the ESD2000i tester.     950
Hipotronics HDB-6 DC Hipot tester, 5000V max. Failure alarm when arcing is detected. Pic 390
IMCS System 700 Electrostatic Discharge (ESD) IC tester. Designed to test IC's with up to 13kV.  Full specs  Pic  IN STOCK    call
IMCS 2400C Electrostatic Discharge (ESD) IC tester. Designed to test IC's with up to 9kV per Mil-Std-883, Method 3015 for Human Body Model current waveforms Pic  IN STOCK    1950
Keytek ECAT Keytek ECAT system. Test Surge, EFT/B, ESD and PQF. IN STOCK. (call for the module availability). Pic Pic call
Keytek E501 Module for Keytek ECAT system. IN STOCK call
Keytek E502 Module for Keytek ECAT system. IN STOCK call
Keytek E411 Module for Keytek ECAT system. IN STOCK call
Keytek E4552 Module for Keytek ECAT system. 277V outlet. IN STOCK call
Oryx System 700 Electrostatic Discharge (ESD) IC tester. Designed to test IC's with up to 13kV. Full specs  Pic   IN STOCK    call
ROD-L M25 kGround continuity tester in full compliance with BSI, VDE, IEC standards.Pic 550
ROD-L M30 Ground continuity tester in full compliance with BSI, VDE, IEC standards Pic 650
ROD-L M35 Ground continuity tester in full compliance with BSI, VDE, IEC standards Pic 850
ROD-L M100AVS5-2.8-40 AC Hipot Tester. 2.8 kV max, up to 40 mA. Test for dielectric voltage-withstand for CS, VDE, UL, IEC Pic 595
ROD-L M100DC5.5-4 DC Hipot Tester. 5.5 kV. Test for dielectric voltage-withstand for CSA, VDE, UL, IEC 695
ROD-L M100DC5.5-5 DC Hipot Tester. 5.5 kV, 5mA test current. Test for dielectric voltage-withstand for CSA, VDE, UL, IEC 750
ROD-L M100DC5.5-10 DC Hipot Tester. 5.5 kV, 10mA. Test for dielectric voltage-withstand for CSA, VDE, UL, IEC 950
ROD-L M988 GPIB controller for the ROD-L  hypot and ground fault testers. 650

MICROWAVE COMPONENTS ( also see  ATTENUATORS )

Anritsu 34NFN50 N type precision connector Male to Male. New equipment!        50
Anritsu 73N75 RF Detector. 100kHz-2GHz, Negative polarity. N type male connector. New condition      175
Anritsu K210 K type presision connector. DC-40GHz,  Female to Female. New equipment.        95
Anritsu K232B K type precision connector DC-40GHz,  Female to Female, Panel mount. New equipment      120
Anritsu 3740A-Q Transmission/Reflection  Test set. For Anritsu/Wiltron network analyzers. Q- band 33-50GHz.    1950
Anritsu 3741A-Q Transmission/Reflection  Test set. For Anritsu/Wiltron network analyzers. Q- band 33-50GHz. Pic    2500
Anritsu MA2425A RF Power Sensor 10MHz-50GHz. New demo units. Including 3.5mm adapter      call
Anritsu MA4610A RF Power Sensor. -50dBm to +10dBm, 50Ohm, 500MHz.      325
Anritsu  600-60 Pin Depth Gauge for microwave connector verification. NEW! iv      195
Anritsu 560-7S50-2 RF Detector  10MHz-26.5GHz. New demo units. ii      495
Anritsu  5400-6NF50 Autotester, 1MHz-3GHz, 50Ohm, New demo units      750
Anritsu  5400-6NF75 Autotester, 1MHz-3GHz, 75Ohm, New demo units      650
Anritsu  62N75 VSWR Bridge 10MHz-1GHz, 75Ohm. New demo units. ii      475
Agilent 5364A Microwave Mixer/Detector. 2-18GHz built in 70dB attenuator. pic      950
Agilent 8762B Coaxial switch DC-18GHz. SPST.        95
Agilent 33330C RF detector 10MHz-26.5GHz, Negative output.      275
Agilent 85902A Burst Carrier Trigger. NEW UNIT. Perform accurate RF power measurments with spectrum analyzer      250
DMT M6-413G38T Microwave switch DC-18GHz, SP3T, SP6T. Mil. spec. New unit. Specs      350
HP 478A Thermistor mount power sensor. For the HP 432A & 432C RF power meter 10MHz-10GHz      249
HP J486A Thermistor mount power sensor. For the HP432 RF power meter      185
HP 3717A 70MHz Modulator/Demodulator. Available options: 16, 17, 18, H31, H32  or 004, 031, 032, 033, 034, 035, 100      950
HP 8482A RF Power sensor 100kHz-4.2GHz, 100mW. Late serial number      650
HP 8484A RF Power sensor 10MHz-18GHz, 0.1nWt to 10uWt.      300
HP 8411A Microwave Frequency converter for the HP8410A network analyzer.      350
HP 8762A Microwave switch. 4 GHz BW, SPDT, SMA. 24VDC. Same as HP 33311A        75
HP 11665A Microwave Modulator. On/Off type. Designed to be driven directly by the HP8755 plug-in      125
HP 11691D Directional coupler 2-18GHz, 22dB coupling, dual.  Option 001      350
HP 11941A Close Filed Probe. 9kHz-30MHz, works with any spectrum analyzer. Detect 9kHz-30MHz electromarnetic emissions      550
HP 11970A Harmonic mixer 26.5GHz-40GHz. Waveguide to SMA.       695
HP 33311A Microwave switch. 4 GHz BW, SPDT, SMA. 24VDC. Same as HP 8762A Cat. price: $557        75
HP 33312B Microwave switch. 18GHz, 3 Port, SMA connectors. 5V or 24V option      250
HP 33313B Microwave switch. 18GHz, 4 Port, SMA connectors.      250
HP 85052A 3.5mm Calibration kit. OPT 010 (Beadless 15cm airline). Unused like condition. SOLD   2750
HP 85650A Quasi Peak Adapter adds EMI receiver capabilities to the HP8566, 8567, 8568 spectrum analyzers    1250
Integra DWM1800 Dual wavemeter with Tunable filter. 1-18GHz range      750
Krytar 1851 Directional coupler. 0.5-18.5GHz, -10dB. IN STOCK!      195
Krytar 2618 Directional coupler. 1.7-20GHz, 16dB. IN STOCK!      250
Narda 3122 Directional Coupler 1-18GHz, N conn. in & out, SMA detector connect     250
Narda 23509 Directional coupler 7-18GHz, -10dB, APC-7 connectors    150
Pacific Measurments 15176 Microwave Detector Probe. 10MHz-18GHz. For use with scalar network analyzers      190
Telewave ANT2045Y12-WRU Base Station antenna. Directional YAGI. 500Wt, Freq. range: 1920-2170MHz, 12dBd, 23", 6lb. New equipment      190
Telewave TWL-50 Coaxial RF termination. 50Wt, DC-2500MHz, VSWR 1.1:1, "N" connector.  More Info       95
Wavetek 15176 Microwave Detector Probe. 10MHz-18GHz. For use with scalar network analyzers      190
Wavetek 16934 RF power sensor 30MHz-18.5GHz. For the Wavetek  8540 power meters      850
Gigatronics 16934 RF power sensor 30MHz-18.5GHz      850
Wiltron ND15524 Detector 10MHz-18.6GHz, +20dBm max input, SMA input    95
Wiltron 87A50 VSWR Bridge. Frequency Range: 2GHz-18GHz   450
Wiltron 97A50 SWR Autotester.   Frequency Range: 10MHz-18GHz. APC-7 DUT port, "N" RF in port. Detected output BNC. SOLD 495
Wiltron  600-60 Pin Depth  Gauge for microwave connector verification. NEW! iv      195
Wiltron D-25400 Directional bridge 75Ohm, Derictivity 25dB <500kHz, 30dB up to 3GHz. Unused equipment. 395

OPTICAL & LASER TEST EQUIPMENT & ACCESORIES

Accufiber 100C Optical fiber temperature controller. SENSORS ARE NOT INCLUDED      650
Agilent 8163A Lightwave multimeter. For use with Agilent and HP 81000 series plug-ins. SOLD    2900
Agilent 11980A Fiber-optic interferometer with opt 005 (extended delay range of  5.2km) and FC/PC conn. Picture    1950
Agilent 81633A Optical power sensor module GaAs. 850-1700 nm. +10dBm to -90dBm. SOLD    1200
Agilent 81635A Optical power sensor module 850-1650 nm. Dual channel. SOLD    3500
Agilent 81650A Laser source. High stability, 1300nm, 1mW. Fabry-Perot type. List price $8500.    1950
Agilent 81689A Tunable Laser Source.  For use with Agilent 8163/8164 meters. jf    2500
Ando AQ8201-02 Display module. IN STOCK! PICTURE      850
Ando AQ8201-03 Plug-in module for Ando AQ8201 optical attenuator. IN STOCK! PICTURE      750
Anritsu ML9001A Optical power meter. Accesories are not included      350
EIT UVICURE Radiometer for measuring UV energy. Range:10mW/CM2-10W/CM2, 320-390nm. INFO   PICTURE      690
EXFO IQ-203 Optical system mainframe. Plug-in modules sold separately. SOLD   950
EXFO IQ-1600 Optical power meter plug-in.Four input channels. jf   1895
EXFO IQ-1643 Optical power meter plug-in.Four input channels 880-1700nm, +9 to -85 dBm. jfII   1895
EXFO IQS-2600B Tunable Laser source. jf   2500
EXFO IQ-5150 Polarization State adjuster. jf   1900
EXFO Q-9401 Wavelength Reference module. jf   1900
EXFO IQS-51P Mainframe. Modules are available separately. jf.   1895
EXFO IQS-2600B Optical power meter plug-in.Four input channels 880-1700nm, +9 to -85 dBm. jfII   1895
HP 8152A Optical power meter. Dual channel. GPIB interface. Sensor head not included      295
HP 8153A Lightwave Multimeter Mainframe. Compatiable with the 81500 series plugins. SOLD    395
HP 10701A Optical beam splitter. Mounting hardware is available separately        85
HP 10707A Optical beam bender. Mounting hardware is available separately        85
HP 10780F Remote optical receiver. NEVER USED. Sensitivity: 2.2 uW with 2 m fiber (5 uW with 10m fiber)      150
JDSU BBS-30-F2-141 EDF ASE Broadband Light Source. Range: 1528-1565nm, 30mW. Spectral stability:  <0.005dB (15min), Spectral Width at -10dB: 43+/-1nm, Output polarization: Depolarized. PICTUREINFO JF 1950
Luxtron 100C Optical fiber temperature controller. SENSORS ARE NOT INCLUDED      650
Ophir DGX Laser power-energy meter. Requires measuring head (not included).  picture      250
Spectra Diode Lab SDL-800M Laser diode power supply and laser driver. 0-1999mA, 50kHz BW, 100ppm stability. More info        750
TTI TIA-500 Optical to Electrical converter InGaAs 900-1700nm, x1/x10 gain Tr 1.4K/14K, 50Ohm output      295
VWR 20904-010 Touchless Digital Tachometer with memory. Case included.      195

GRAPHIC PLOTTERS, CHART RECORDERS, PRINTERS

Astro-Med MT95K2 Chart Recorder. With modules: AWP1 (2 pcs), AUX TPH, TPH, SYS CON, GPIB,  TMP1, BCL pic    1950
Astro-Med MT9500L Oscillographic Recorder, 8 Chan, Freq.: DC-5kHz , Sampling rate: 30kHz, 12bit accuracy,  IEEE-488 & RS-232, Use as an A/D converter with digital output to host PC. Gain control for each chan. pic      975
Dranetz 626GP Graphics printer for the Dranetz 626 power line analyzer. With interface cable.  pic      195
HP 2225A Ink-jet printer with GPIB ( IEEE-488 ) interace. pic Works with any GPIB equipped instrument that supports printout.      185
HP 2225C Ink-jet printer with Centronics (parallel) interace.       185
HP 2225D Ink-jet printer with RS-232  interace.        185
HP 7015B X-Y recorder with sweep function. Sensitivity 1mV/in-10V/in. 8.5x11" plot area. Sweep time: 1cm/s to 0.2mm/s. opt 001 sold      500
HP 7035B X-Y recorder. Sensitivity  1mV/in-10V/in. 8.5x11" plot area. SOLD      500
HP 7090A Plotting Measuring system. Use as X-Y recorder, color plotter or Data aquisition system. Two 4.5 digit 2  analog inputs      795
HP 7133A Strip chart recorder. 8 chart speeds 1 in/hr to 6in/min. Input: 1mV to 100V in 12 ranges      290
HP 7440A Color Plotter. A or A4 paper size, 8 Pens included,   0.001" step size, 0.004" repeatability. RS-232C

     275

HP 7470A Color Plotter. A or A4 paper size, 2 Pens included,   0.001" step size, 0.004" repeatability. GPIB interface

     250

HP 7475A Graphic  plotter. 6 pens Accommodates 8.5 x 11 inch and 11 x 17 inch sheet size. Addressable step .001 inches, repeatability .004 inches. RS-232C   interface       295
HP 7550A Graphic plotter 8 pens, up to A4 to B ( 11x17in). RS-232, GPIB & Parallel  interface, resolution: 0.025mm, up to 31.5 in/s pen speed. Autofeed paper tray. New pens included.        350
HP 7550B Graphic plotter 8 pens, up to A4 to B ( 11x17in). RS-232, GPIB & Parallel  interface, resolution: 0.025mm, up to 31.5 in/s pen speed. Autofeed paper tray. New pens included.        550
HP 9122D Floppy disk drive. Dual extrernal drives add 3.5" diskette storage HP instruments.      395
HP 92203J HPIB to Centronics interface converter. Let's you use any parallel interface printer instead of GPIB printers.       95
Omega OM501-F Hybrid recorder. 13 input channels Voltage or T/C input One chanel Ohms, VAC, VDC. Color printout, 5 digit accuracy. Analog chart or Digital trend print out. pic     850
Tektronix HC100 Color Plotter. with new pens! GPIB or Centronics interface.

295

Yokogawa 3087 Hybrid recorder. 13 input channels Voltage or T/C input One chanel Ohms, VAC, VDC. Color printout, 5 digit accuracy. Analog chart or Digital trend print out. pic Complete model number 308764     850

ALL OTHER MISCELLANEOUS EQUIPMENT

Agilent 10467-68701 0.5mm Microprobe for SMD devices. Set of 4 clips.  NEW UNITS. No lead time and 60% off list 120
Agilent E8142-60001 Test leads set for the Agilent 16522A, 1670G, 1671G, 1672G, 16720A, E8142A     55
Agilent 10460A ECL Clock Pod for Agilent logic analyzers. SOLD     95
Agilent 10462A TTL Clock Pod for Agilent logic analyzers.  With test leads.     80
Agilent 10465A ECL Data Pod for Agilent logic analyzers. With test leads.     95
Agilent 10477A Clock Pod for the pattern generator NEW. Test leads included. SOLD     95
Agilent E1964A GPRS Mobile Test Application Software. NEW!      95
Agilent E5359A Micro Probe makes it easy to connect an Agilent logic analyzer to the target system. New!     490
Agilent E5346A High density adapter for Agilent & HP logic analyzers     195
Agilent E5383A 16-channel  probe lead set for all Agilent 1650/16500/54XXX/16700/1680  analyzers   pic     150
Cannon MDD6106 Floppy Drive replacement for the HP 4145A Semiconductor parameter analyzers. HP p/n 0950-0863. FREE 4145A boot diskette included.

285

HP 0950-0863 Floppy Drive replacement for the HP 4145A Semiconductor parameter analyzers. OEM p/n Cannon MDD6106. FREE 4145A boot diskette included.

285

HP 0950-1752 Floppy Drive for the HP 4145B, HP 4195A analyzers. OEM p/n Sony MP-F52W-30

250

HP 16048B Test leads extension fixture for the HP 4192/94 Impedance analyzer. New with connector plate     295
HP 16058A Test fixture for the HP4145A, 4145B, 4155, 4156   analyzers. With adapter. SOLD     595
HP 16092A Spring loaded Test adapter. For impedance measurment on HP and Agilent analyzers. HP 8120-2291 test cable is also avail.      795
HP 04191-85302 Part of HP 4191A calibration kit.     395
HP 04191-85300 Part of HP 4191A calibration kit.     395
HP 04191-85301 Part of HP 4191A calibration kit.     395
HP 4191A Calibration kit. Consist of  04191-85302, 04191-85300, 04191-85301     1095
HP 5062-3977 HP Mounting brackets set. NEW!        75
HP 5062-3990 HP Handles set. NEW! ii        75
HP 5062-3989 HP Handles set. NEW! ii        75
HP 5063-9229 HP Handles set. NEW!        95
HP 5063-9240 HP Rack Adapter Kit. NEW!        55
HP 5063-9243 HP Rack Adapter Kit. NEW!      105
HP 8120-2291 Test cable for the HP 4191A analyzer.      175
Agilent 16441A R-Box for the HP 4155/4156 analyzer. Avoid DUT damage by limiting current flow     250
Agilent 85620A Mass memory module for the HP8560 series spectrum analyzers, rev. C firmware.     595
Agilent 85727A GSM Multiband Transmitter Personality module for HP8560 series.  List price $4350     350
Agilent 16550-61601 Logic analyzer data cable. Used by HP/Agilent 1660/1670 series analyzers. Agilent price $600 250
Agilent 16710-61603 Logic analyzer data cable. Used by HP/Agilent 1660/1670 series analyzers. Agilent price $600 250
Agilent 01650-61608 16-channel  probe lead set for all HP 1650/16500/54XXX/16700/1680 series analyzers    150
Agilent 01650-63203 Isolation adapter. 100kOhm isolation for all HP series analyzers .     65
Agilent 54620-61801 Logic analyzer data cable. Used by HP/Agilent 54622A, 54645A series analyzers. 395
Clarostat 240C Decade resistor. High power 225Wt per decade, 1Ohm to 999,999Ohm with 1 Ohm step.1000VDC/600VAC max. SOLD 395
Credence CTK15 Electro-Magnetic Near field Probe Kit. Electrical filed probe ScanEM-EC 2MHz-2GHz, Sensitivity -10dBm/(V/m), Magnetic field probe: ScanEM-HC 1MHz-1GHz, -10dBm/mT. Stand alone or for use with  Scopes  & Spectrum analyzers pic Info    450
Data I/O Unisite 68 Universal Programmer with Site 48 and Pinsite Adapters. 4MB RAM. ver 5.2 software 1250
Data I/O 2900 Universal Programmer with software & DIP base. Other type adapters are available  Pic SOLD 350
Data I/O 3900L Universal Programmer with ver. 7.5 software. DIP, SOIC, PPI bases and adapters are available separately. Pic 595
Data I/O 3980 Universal Programmer with ver. 7.5 software. DIP, SOIC, PPI bases and adapters are available separately. Pic 695
Data I/O 39Base-0301 SOIC Base for the Data I/O 3900, 3900L, 3980 programmers. Match book adapters available 250
Desco 19250 Wrist strap and foot ground tester. List price $265 75
Emulation Technology PLCC to DIP, Grid Array to DIP  adapters and sockets. Different sizes are available call
Fibercorp  Predictor Battery analyzer. Measure Voltage, Internal Resistance, Intercell resistance. Test 1 to 4 cell systems,  Stores data on 256 batt. cells, Computer interface. Also calculates, temperature and specific gravity. Pic Specification 950
GR 107J Variable Inductor. 10uH-50uH, 6A, 15Wt 195
GR 107K Variable Inductor. 100uH-500uH, 16A, 15Wt 195
GR 1481M Standard Inductor. 5H , +/-0.25% accuracy 195
GR 1406A Standard Capacitor 1000pF, 0.1% accuracy 475
GR 1406D Standard Capacitor 100pF, 0.1% accuracy 395
GR 1413 Precision Decade Capacitor, 6 decades, 0.05% accuracy. Needs work 500
GR 1433L Decade resistors 10Ohm-100 kOhm with 4 decades of resolution, 10 Ohm step incement 150
GR 1432M Decade resistors 1Ohm-100 kOhm with 5 decades of resolution, 1 Ohm step incement 195
GR 1432P Decade resistors 10Ohm-1,111,100 kOhm with 5 decades of resolution, 10 Ohm step incement. SOLD 195
GR 1481A Standard Inductor. 1mH, +/-1% accuracy 195
GR 1481G Standard Inductor. 100mH , +/-0.25% accuracy 195
GR 1481M Standard Inductor. 5H , +/-0.25% accuracy 195
Hi-Lo System ALL-LAB2 Universal device programmer and IC tester. Supports 10,000+ devices. Windows software

350

HP 546A Logic Pulser. Inject pulses in TTL/CMOS circuits for quick troubleshooting      95
HP 547A Logic tracer. Detect shorted  nodes in TTL & CMOS circuits. SOLD    120
HP 04085-61651 Cable harness for the HP 4062A Semiconductor system

350

HP 2090-0210 Color display module. Factory sealed. 1 year warranty.   Pic

 395

HP 5090-4833 Set of  20 SMT minigrabbers. Designed to fit the Agilent E5383A leads but can be used with most scope probes.

30

HP E2418A Preprocessor interface for the TI TMS32020. Software, Adapter & Manual. New unit   190
HP E2564A Varicomb PAL encoder ( HP C111 ), Convert component inputs into composite PAL signal   190
HP E5359A Micro Probe makes it easy to connect an Agilent logic analyzer to the target system. New!   490
HP E5383A 16-channel  probe lead set for  all HP 1650/16500/54XXX/16700/1680 series analyzers   150
HP 11473A Balancing transformer convert 75 Ohm unbalance signals to 600 Ohm 150
HP 16520-61602 Cable for HP 16520A, 16521A, data pattern generators       95
HP 16515-63201 Probe adaptor for the HP 16520A, 16521A data pattern generators       65
HP 16550-61601 Logic analyzer data cable. Used by HP/Agilent 1660/1670 series analyzers. Agilent price $600 300
HP 16710-61603 Logic analyzer data cable. Used by HP/Agilent 1660/1670 series analyzers. Agilent price $600 450
HP 16700-68700 Logic analyzer demo board to demonstrate capabilities of the 16700A oscilloscope      95
HP 54650A GPIB interface module for the HP546XX series oscilloscopes     195
HP 54651A RS-232 interface module for the HP546XX series oscilloscopes     195
HP 54659B RS-232 Centronics interface/storage module for the HP546XX series oscilloscopes     195
HP 54654A Oscilloscope training kit. Great for students learning how to operate digital oscilloscope     150
Krohn-Hite 3202 Variable bandpass, high pass, low pass, band reject filter. 20Hz to 2MHz, 24dB per octave rolloff. 2 chanell. Rackmount version. 495
Krohn-Hite 3342 Electronic filter & 20dB amplifier. High pass or  low pass mode. 0.01Hz-99kHz, 2 channel, 3 decade resol. Pic 495
Krohn-Hite 3343 Electronic filter & 20dB amplifier. High pass or  low pass mode. 0.01Hz-99kHz, 2 channel, 3 decade resol. Pic 495
Krohn-Hite 3750 Electronic filter. Bandpass, high pass, low pass, band reject modes.  0.02Hz-20kHz. SOLD 395
Microchip Promaster Device programmer with Promate PIC16C64/74 Adapter 190
Ohmite 3420 Resistor substitution box. 1 to 11,111,111Ohm with 1Ohm increment. 1% above 9Ohms, 5%  1-9 Ohm, 0.5Wt 95
ATMI FMK Satellite Toxic Gas Detection System. Complete point of use system with 9602-9902 sensor. Info 390
Pomona 6311 0.5mm Microprobe for SMD devices. Set of 4 clips.  NEW UNITS. No lead time and 60% off list 120
R&S 0396.4940.00 Rohde & Schwartz Handles & Angles kit. NEW! iii      95
Sencore PR57 Isolation transformer and AC leakage tester. Variable line voltage output, up to 4A.

175

Sony CHM-7501-00 Color display module. Factory sealed with 1 year warranty. Pic

395

Sony MP-F52W-30 Floppy Drive for the HP 4145B, HP 4195A analyzers. HP p/n 0950-1752

250

Sony MFD-52W Floppy Drive for the HP 4145B, HP 4195A analyzers.. HP p/n 0950-1752

250

Sorensen PIC1T160-30T1M9A Power supply controller with optional GPIB interface. Control up to 4 power supplies from one front panel or via GPIB interface.

495

System General SGUP-85A Device programmer. Progam up to 40 pin devices without a host computer. Pic

195

Teac FD-235GF Flopppy drive for Tektronix 370A, 371A, 371B curve tracer. 275
TEK  92DM31 Probe for Motorola 68020 processor. Up to 33MHz. For DAS9200 system 120
TEK K465 Tektronix instrument rack / cart. Can be picked locally in assembled state    495
TEKTRONIX  LV512 Tektronix LV 512 tester, replacement boards. Complete set.

650

TEK P6417 Probe NEW & COMPLETE! For Tektronix logic analyzers    195
TEK P6434 Probe NEW & COMPLETE. Mass termination probe for Tektronix   logic analyzer systems.  SOLD    295
TEK P6452 Data Probe for DAS9100 system     120
TEK P6454 Clock probe for DAS system. New sealed package     120
TEK P6460 Logic analyzer probe with accesories. For use with TEK 1430 series logic analyzer       95
TEK  P6480 Tektronix Logic analyzer probe 120
TEK P6487 High speed probe for Prizm series logic analyzer probe with flying leads.     190
TEK 85E6825 Motorola 68020 emulation probe. For use with Tektronix Prizm logic analyzers     150
TEK  SMK4 Hand Probe fine-pitch SMD minigrabbers. 25mil JDEC, 0.5mm EIAJ. Micro Klipchip adapter SMK4. NEW!  120
TEK  TM501 Mainframe chassi for 1 TEK 500 series plug-ins.  120
TEK  TM502A Mainframe, holds 2 single width Tektronix plug-ins modules. pic 175
TEK  TM503 Mainframe, holds 3 single width Tektronix plug-ins modules. pic 100
TEK  TM503B Mainframe, holds 3 single width Tektronix plug-ins modules. pic 150
TEK  TM504 Mainframe chassi for 4 TEK 500 series Tektronix plug-ins. pic 100
TEK  TM515 Portable 5 slot TM 500 series plug-in chassi with front cover 150
TEK  TM506 Mainframe chassi for 6 TEK 500 series plug-ins.  pic 150
TEK  TM5003 Mainframe chassi with 3 slots. IEEE-488 interface. Rack mount and rear interface available. SOLD 350
TEK  TM5006 Mainframe chassi with 6 slots. IEEE-488 interface. Rack mount and rear interface available 150
TEK  010-0582-00 High density probe interface adapter. 195
TEK  196-3470-00 Flying leads probe set for the Tektronix logic analyzer probes. NEW!. Save 50% 132
TEK  196-3472-00 Flying leads probe set for the Tektronix logic analyzer probes. NEW!. Save 50% 132
Wavetek 442 Electronic filter. Hi/Lo pass. Dual channel. 100kHz max. 20dB gain. 2 decades of accuracy 395
OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!  E-MAIL US

TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511

OSCILLOSCOPES,   CURVE TRACERS,   X-Y DISPLAYS, PROBES  AND  ACCESSORIES

MODEL DIGITAL OSCILLOSCOPES ( DSO ) Automotive, Digital design, Production, Statistical Process Control Price US$
Agilent 54622A 100MHz, 200MS/s, 4MB MegaZoom deep memory.  Flexible triggerring including I2C, SPI, LIN, CAN and USB. FDD, FFT   1495
Agilent 54845B 1.5GHz, 8Gs/s,  4 channel, Color, USB, GPIB, CDROM, FDD, Mouse 8500
GW Instek GW-830 100MHz, 100MS/s, 50K Samples memory. RS-232, Printer port, Video output. X-Y mode, Voltage & Time cursors.  Pic 395
GW Instek GDS-2240 200MHz, 4 channel 1GS/s, 25K Samples memory. USB, Color screen, RS-232, X-Y mode. Full Specs 1250
Hameg HM1508-2 100 MHz Analog/Digital scope, with 1MB memory per chan., FFT, RS-232, Memory zoom, two logic input channels. Pic 1850
HP 1662AS 250 MHz,  1GS/s, 2 Chan oscilloscope with 500MHz 68Channel Logic analyzer. FDD, Mouse. pic 1950
HP 16531A 100 MHz, 400MS/s, 2 Channel module. For use with HP16500 logic analyzer chassis 250
HP 16532A 250 MHz, 1GS/s, 2Chan. 8kB per channel. For use with HP16500B/C chassis. ( available separately) 500
HP 54110D 1 GHz, 2 Ch, 40 MS/s, 10 bit vertical resolution, Color, Autosetup, IEEE-488 interface 950
HP 54111D 500 MHz, 2 CH., 2GS/s max, 8K points record, Color, Autosetup, GPIB.   HP 54114A incl. 2300
HP 54120T Digital oscilloscope. 20GHz Bandwith, TDR, 4 channels   HP54121A Test set with HP54120A 3500
HP 54201A 300MHz, 200MS/s, 2 Channel 50MHz glitch capture. GPIB 495
HP 54201D 300MHz, 200MS/s, 2 Channel 50MHz glitch capture & 24 logic triggering channels. GPIB. SOLD 650
HP 54501A 100MHz, 4 channel.  Auto waveform & parameter  measurments, GPIB interface.  750
HP 54504A 400MHz, 2 channel.  Auto waveform & parameter  measurments, GPIB pic  950
HP 54510A 250MHz, 1GS/s, 2 channels.  Auto waveform & parameter  measurments, Autosetup. GPIB pic  975
HP 54520A 500MHz, 1GS/s-500MS/s, 2 Channel, Floppy drive, Printer port. Large screen display. pic 1500
HP 54540A 500MHz, 2 GS/s, 4 Channel, Floppy drive, Printer port. Large screen display. pic 1750
HP 54542A 500MHz, 2 GS/s, 4 Channel, Floppy drive, Printer port. Large screen display. pic SOLD 1750
HP 54603B 60MHz, 20MS/s,  2 Channel, DSO.  9" easy to read display. RS-232, GPIB, Paralle interfaces are available 475
HP 54600A 100MHz, 20MS/s, 2 Channel. 9" display. RS-232, GPIB, Parallel interfaces are available. SOLD 595
HP 54601B 100MHz, 20MS/s, 4 Channel. 9" display. GPIB interface included.. 750
HP 54602B 150MHz, 20MS/s,  4 Channel,  9" display. RS-232, GPIB interface included. SOLD 895
HP 54615B 500MHz, 1GS/s,  2 Channel,  9" display. Optional Video trigger (009). GPIB interface. Glitch detect, HP active probe p/s. 1450
HP 54721A 1GHz Vertical amplifier plug-in. For 54700 series oscilloscopes 550
Instek GDS-2240 200MHz, 4 channel 1GS/s, 25K Samples memory. USB, Color screen, RS-232, X-Y mode. Full Specs 1250
LeCroy 9310L 300MHz, 2CH, with 1MB points memory per channel option ("L"). GPIB, RS-232, PCMCIA, 9" display  2500
LeCroy 9362C 1.5GHz, 10GS/s, 2CH., Color, built in printer, FDD, GPIB, RS232, Centronics ports.  SOLD 2750
TEK 7D20 Digitaizer plug-in.Digital storage oscilloscope plug in for the TEK 7000 series oscilloscopes    750
TEK DSA602A Digital signal analyzer/DSO. 1GHz BW, 2Gs/s up to 12 input channels. Plug-ins available 1200
TEK RTD710 Waveform digitizer. 200MS/s, 10 bit resolution. Works with any X-Y display. IN STOCK! 1500
TEK RTD720 Waveform digitizer. 2GS/s, optional 1MB memory (opt 11). IN STOCK! 2950
TEK TWD 120 Color Digital Storage oscilloscope on any PC. 100 Megasaples/sec. 8 bit vertical resolution.  5000 points record per channel.  Smaller than a laptop.   Windows  3.1/95/98 software, Carrying case, Manual,  SCSI card and cable.  Pict1, Pic2   Demo download 390
TEK 222 Handheld 10MHz, 2 Chan. Digital storage, 10Ms/s, Battery or  12VDC operation.   850
TEK TDS320 100MHz, 2 Chanel, 500MS/s, 2mV sensitivity. Measure 11 waveform parameters automatically. Pic   495
TEK TDS340A 100MHz, 2 Chan., 500MS/s, 2mV sensitivity. GPIB, RS-232, VGA,  Floppy Drive and Printer port. Pic   595
TEK TDS 340A 100MHz, 2 Chan., 500MS/s, 2mV sensitivity. GPIB, RS-232, VGA,  Floppy Drive and Printer port. Pic   595
TEK TDS350 200MHz, 2 Channel, 1GS/s, 2mV sensitivity. Measure 11 waveform parameters automatically.    750
TEK TDS360 200MHz, 2 Channel, 1GS/s, 2mV sensitivity. Measure 11 waveform parameters. Floppy drive    950
TEK TDS 360 200MHz, 2 Chan., 1GS/s, 2mV sensitivity. Measure 11 waveform parameters Floppy drive    950
TEK TDS380 400MHz, 2 Chan., 2GS/s, Floppy drive. Measure 11 waveform parameters simultaneously. pic SOLD 1650
TEK TDS 380 400MHz, 2 Chan., 2GS/s, Floppy drive. Measure 11 waveform parameters simultaneously. pic SOLD 1650
TEK TDS420 150MHz, 4 Channel. 1mV sensitivity, GPIB.  SOLD   850
TEK TDS 420 150MHz, 4 Channel. 1mV sensitivity, GPIB.  SOLD   850
TEK TDS460 350MHz, 4 Chan.,  60K Record (opt 1M) & Video triggering (option 5), Floppy, GPIB.  SOLD 1750
TEK TDS460A 400MHz, 4 Channel, Options: 1F (floppy drive). Rackmount kit available 1500
TEK TDS460A 400MHz, 4 Channel, Options: 1M, 05, 2F, 13. Rackmount kit available 2500
TEK TDS460A 400MHz, 4 Channel, Options: 1M, 05, 2F, 13. Optional portable printer (opt. TDS4F5P) 2500
TEK TDS460AXL 400MHz, 4 Chan., Options: 1M (120K memory), 05 (Video), 2F (FFT & Waveform Math), 13  (GPIB, RS-232, Centronics). Rackmount kit available 2500
TEK TDS 460AXL 400MHz, 4 Chan., Options: 1M (120K memory), 05 (Video), 2F (FFT & Waveform Math), 13  (GPIB, RS-232, Centronics). Rackmount kit available 2500
TEK TDS520A 500MHz, 500MS/s,  2 main and 2 auxiliary channels. GPIB, Floppy drive (opt 1F)  pic 1495
TEK TDS520 REPAIR SERVICE from $650. Quick turn around time    650
TEK TDS524A REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS540 500MHz, 1GS/s, 4 channel. Flexible triggering,  50K points record per channel (opt 1M), Opt 2F (FFT), opt 13 (RS-232, Parallel Inteface) 1750
TEK TDS510 REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS510A REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS520 REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS520A REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS520D REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS540 REPAIR SERVICE from $650. Quick turn around time    650
TEK TDS540A REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS540C REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS540D REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS544A REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS640 REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS640A REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS644 REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS644A REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS644A 500MHz, 4CH, 2GS/s, Color, Floppy Disk drive. Opt: 1F, 2F, 13. 6month warranty. pic 1950
TEK TDS744A REPAIR SERVICE from $850. Quick turn around time    850
TEK TDS754C REPAIR SERVICE from $850. Quick turn around time    850
TEK TDS784A REPAIR SERVICE from $950. Quick turn around time    950
TEK TDS784D REPAIR SERVICE from $950. Quick turn around time    950
TEK TDS744A

500MHz, 4CH, 2GS/s, 500Msample memory (opt 1M), Color screen,  Floppy drive, GPIB, RS-232, Centronics port.

1950
TEK TLS216 REPAIR SERVICE from $750. Quick turn around time    750
TEK TDS820 REPAIR SERVICE from $850. Quick turn around time.    850
TEK TDS210

60MHz,  2 Channel, 1GS/s, LCD display, automatic waveform measurments, math functions, X-Y mode

  550
TEK TDS2024C

200MHz, 4 Channel, 2GS/s, 2.5k record length per chan., USB, FFT, 16 waveform measurment, TFT Display, 4.4lb. pic sold

1550
TEK TDS3032

300MHz, 2CH, 2.5GS/s, Optional FFT & TRG module. FDD, Printer port. Optional battery is available. Screen imperfect.

1950
TEK 2201 20MHz, 10MS/s, 2Ch, Digital storage and Analog scope in one instrument. 2mV to 5V per/div sensitivity. 2K record length 595
TEK 2220 60MHz, 20MS/s, 2Ch, digital storage and analog scope in one instrument. 2mV to 5V per/div sensitivity. 495
TEK 2221 60MHz, 100MS/s, 2Ch, digital storage and analog scope in one instrument. 2mV to 5V per/div sensitivity. Optional GPIB port pic 595
TEK 2430 150MHz, 100 MS/s, 2 Chan., One button Auto setup. Automatically measure V, Freq, Time pic 895
TEK 2430A 150MHz, 100 MS/s, 2 Chan., One button Auto setup. Automatically measure V, Freq, Time. GPIB interface  pic 895
TEK 2440 300MHz, 500 MS/s, 2 Channel. Opt 11. One button Auto setup. Automatic param. measurments. GPIB interface pic SOLD 995
TEK 11403A Oscilloscope mainframe. 3GHz Bandwith. Option 1S.   Plug-ins are available separetely 995

ANALOG OSCILLOSCOPES for Audio, Research, Laser, Students, Video

B&K 2160 60MHz, 2 Channel oscilloscope with Component tester. Displays I-V characteristics of any electronic device.  pic 295
Hitachi V-1560 100MHz, 2 Chan, 2mV sensitivity. One button autosetup. TV-sync trigger. 90day warr 350
HP 1980B Programmable 100MHz Oscilloscope. Opt. 860. IN STOCK! A001 1200
Kikusui COS 6100 100MHz, 5 Input channels let you observe 5 traces simultaneously, Dual time base 690
LG OS-9020A 20MHz, 2 Channel, easy to use full featured oscilloscope. 195
LG OS-9020G 20MHz, 2 Channel with 1MHz Function generator. 10V p-pk output into 50Ohm, Sine, Triangular, Square waves. DC offset 275
Tektronix T-922R 15MHz, 2 Channel  rack mount oscilloscope , 2mV/div max sensitivity, 0.1uS -0.5S sweep pic 350
Tektronix 475 200MHz, Portable, 2mV/div to 10V/div Vertical deflection range. With probes. pic 90 day warr 395
Tektronix 475A 250MHz, Portable, 2mV/div to 10V/div Vertical deflection range. With probes. pic 90 day warr 450
Tektronix  TAS465 100MHz, 2 Channel, Automatic measurment of waveform parameters. 90 day warranty 450
Tektronix  TAS475 100MHz, 4 Chan, Automatic measurment of waveform parameters. 90 day warranty 495
Tektronix  475A 250MHz, Portable, 2mV/div to 10V/div Vertical deflection range, probes pic 90 day warranty 450
TEKTRONIX SC502 15MHz oscilloscope for Tektronix TM series chassis. 1mV sensitivity. 350
TEKTRONIX 2213 60MHz  portable oscilloscope. 2mV sensitivity,. Lightweight: 13 lb.  6month warr. pic 350
TEKTRONIX 2213A 60MHz  portable oscilloscope. 2mV sensitivity,. Lightweight: 13 lb.  6month  warr. pic SOLD 395
TEKTRONIX 2215 60MHz  portable oscilloscope. 2mV sensitivity,. Lightweight: 13 lb.  6month  warr. pic SOLD 350
TEKTRONIX 2215A 60MHz  portable oscilloscope. 2mV sensitivity,. Dual time base. TV triggering modes. Lightweight: 13 lb. 6month  warr. sold 395
TEKTRONIX  2225 50 MHz, 2 Channel, 2mV max sensitivity, Dual time base.Weights only 13lb.  pic 295
TEK AN/USM-488 100MHz , 2Ch,. 2mV sensitivity, dual time base. TV triggering.. only 13lb, 6month warr. pic 495
TEKTRONIX  2235 100MHz , 2Chanel,. 2mV sensitivity, dual time base. TV triggering.. only 13lb, 6month warr. pic 395
TEKTRONIX  2235A 100MHz , 2Channel,. 2mV sensitivity, dual time base. TV triggering.. only 13lb, 6month warr. pic 495
TEKTRONIX 2236 100MHz  oscilloscope with  Frequency Counter and 4.5 digit Digital multimeter. 6 month warranty pic 550
TEKTRONIX 2245A 100MHz , 4Ch. 2mV sensitivity, dual time base. Cursor measurments. Automatic setup 595
TEKTRONIX 2247A 100MHz , 4Ch. 2mV sensitivity, dual time base. Autosetp and automatically measurement of  waveform parameters. 495
TEK 2445 150MHz, 4 channel. Dual time base. Portable, weight 22.4 lb. 90 day warr., 2 probes  pic 750
TEKTRONIX 2445B 200MHz, 4 ch.  with cursor measurements of V &  time. Dual time base. Portable, weight 22.4 lb. 90 day warr. two 200MHz probes, GPIB and other options are available  pic 795
TEKTRONIX 2445B Upgrade to 400MHz bandwith with included NIST traceable calibration 600
TEKTRONIX 2465 300MHz, 4 channel.  two 300MHz probes, 90 day warranty. Option 11 (active probe power supply) 650
TEKTRONIX 2465CTS 300MHz 4 channel with Counter-Timer and  GPIB IEEE-488 interface. 6 month warranty, two 300MHz  probes 1250
TEK 2465A 350MHz 4 channel analog oscilloscope. Autosetup, on screen waveform parameter measurments. 850
TEK 2465B REPAIR & CALIBRATION. FLAT FEE of $600. ANY PROBLEM. Includes NIST traceable calibration 600
TEKTRONIX 2465B 400MHz  4 ch  500pS rise time. Auto setup feature, on-screen measurements of 12 waveform parameters. 90 day warranty,   Different options are available  pic 950
TEKTRONIX 2465BDM 400MHz  4 ch  500pS rise time. Auto setup feature, on-screen measurements of 12 waveform parameters. DMM, GPIB and Counter Timer  installed 1500
TEKTRONIX 2467B 400MHz  4 channel.  Autosetup & Automatic waveform measurments. GPIB interface. pic

  1950

TEKTRONIX 5103N 2MHz  analog  storage oscilloscope.  500
TEKTRONIX 5111 2MHz  analog  storage oscilloscope.  500
Tektronix 5115 2MHz analog storage oscilloscope. Up to 8 traces simultaneously with 5A14 plug-ins. 450
Tektronix 5440 50 MHz analog oscilloscope. Up to 4 analog channels. Rack mount version is available 495
TEKTRONIX  7603 100MHz Modular oscilloscope. Up to 4 input channels. Large size CRT. Rack mount version 395
Tektronix 7623A 100MHz, Analog storage oscilloscope. Choose from many types of plug-ins. 750
Tektronix 7633 100MHz, Analog storage oscilloscope. Choose from many types of plug-ins. 650
Tektronix  7834 400MHz, Analog storage oscilloscope. Excellent CRT condition. 4 input channels 995
TEKTRONIX 7104 1GHz Oscilloscope, the fastest, real-time oscilloscope ever made.  Ultra-high writing speed of 20 cm/us. 350 ps rise time. Complete dual channel dual time base system pic 1250
Tektronix  C-5C Oscilloscope camera. Capture single shot events with analog Tektronix oscilloscopes. 75
TV WAVEFORM and   X-Y  MONITORS, SEMICONDUCTOR CURVE TRACERS, VECTROSCOPES, TDR's
Agilent 2090-0210 Color display module. Used in many HP & Agilent instruments. Factory sealed. 1yr. warr. Pic

395

Agilent  5062-7345 Rack mount kit for the Agilent & HP 54600 series oscilloscopes SOLD

195

Data Check 5010-ACP XYZ display. Substitute HP model. 1200
JVC TM-550U PAL/NTSC studio monitor. Three way power source 12VDC/120VAC or 12V batt. small size. Professional quality. 450
HP 1332A XY display. Z axis input. High speed and high resolution display. SOLD 750
HP 1340A XY display. Z axis input. High speed and high resolution display 995
HP 35741A Color display for HP computer system.  650
HP 37461A GPIB programmable display. 6" Hi-res CRT.  1200
Leader LBO-51MA XY display. 3MHz Bandwith. Z axis input. OPEN FRAME VERSION. SOLD 650
Leader LBO-5860L TV waveform monitor. Dual channel, Line selection, field selection functions. 590
Leader LVS-5851A PAL/NTSC Vectroscope. Dual channel. Test circle. 450
Leader LTC-905B Semiconductor curve tracer. Test BJT's, MOSFET's, UJT's, Diode's, SCR's on any oscilloscope!  More Info 395
Tektronix WFM300 TV Waveform Monitor. Betacam mode (opt. 10) 850
Tektronix WFM601E Video Waveform Monitor for 270MB serial component operating enviroment. 2450
Tektronix 604 X-Y-Z display. 2MHz signal bandwith (5MHz for Z axis). SOLD 550
Tektronix 608 X-Y-Z display  10MHz signal bandwith  (5MHz for Z axis), High intensity, Beam spot 0.25mm. Contact for available options 650
TEK 5CT1N Semiconductor curve tracer.  Up to 0.5W. 10nA/div to 20mA/div, 0.5V/div to 20V/div horisontal factors. FET or Bipolar devices. Pic   350
Tektronix 528A Waveform Monitor for NTSC 350
TEK 577/D1 Curve tracer 100Wt, 10A continuous, 20A peak pulse current power. Test any semiconductor device for V-I characteristics. Also test batteries, lamps, relays. With 177 test fixture. Device adapters available. 1250
TEK 577/D2 Curve tracer 100Wt, 10A continuous, 20A peak pulse current power. Test any semiconductor device for V-I characteristics. Also test batteries, lamps, relays. With 177 test fixture. Device adapters available. SOLD 1350
TEK 576 Tektronix 576 Curve tracer Flat Rate Repair Service. From $650.  Pic call
TEK 576 Semicunductor Curve tracer. 220Wt, 1500V.   Pic  Device adapters available. 2395
TEK 067-0405-02 Calibration fixture for TEK TDS7000 series oscilloscopes 350
TEK 1420 NTSC Vectroscope with  two separate input channels.   Phase adjustment. Open frame chassi 350
TEK 1485R NTSC/PAL Waveform Monitor. User selectable display for line, field and sync. two inputs, variable vertical gain 750
TEK 1503B Metallic cable TDR. Find faults in coaxial cables up to 50,000ft. long. 1250
TEK 1503C Metallic cable TDR. Find faults in coaxial cables up to 50,000ft. long. Option 04 (YT-1 Printer) 1595
Tektronix 1710B Waveform Monitor for NTSC systems 550
Tektronix 1720 Waveform Monitor/Vectroscope. NTSC 595
Tektronix 1725 NTSC/PAL Waveform Monitor/Vectroscope. 795
Tektronix 1730 Waveform Monitor. Dual channel, Microprocessor control. Front panel setup memory. info Free rack with 2 unit purchase 650
Tektronix 1730D Waveform Monitor. Dual channel. Computer interface 650
Tektronix 1735 Waveform Monitor. Dual system; NTSC/PAL. pic 950
Tektronix 1740 Waveform Monitor/Vectroscope and Phase display. NTSC. 850
Tektronix 1750 Waveform Monitor/Vectroscope and Phase display. NTSC. pic 1095
Tektronix 1751 Waveform Monitor/Vectroscope and Phase display. PAL system 1750
Tektronix 1780R Video measuring system; Waveform Monitor & Vectroscope. NTSC. 1850

OSCILLOSCOPE PROBES, OSCILLOSCOPE ACCESORIES, PLUG-INS

Agilent E2613A Wedge Probe Adapter for TQFP and PQFP, 3 Signal. New in a box. Save 50%.!!! 59
Agilent E2614A Wedge Probe Adapter for TQFP and PQFP, 8 Signal. 0.5mm pitch. New in a box. Save 50%. !!! 120
Agilent E2615A Wedge Probe Adapter for TQFP and PQFP, 3 Signal. New in a box. Save 50%. !!! 59
TEK 5A14N 4 Channel Vertical amplifier plug-in for the TEK 5000 series oscilloscopes. 150
TEK 5A22 Differential amplifier plug-in for the TEK 5000 series oscilloscopes. Hipass-Lowpass filter 195
TEK 5S14N 1 GHz  Time equivalent sampler for 5000 series.  Rise time <350pS, Dual ch., 2V p-p max 500
TEK 7A13 Differential comparator for TEK 7000 series oscilloscopes 195
TEK 7A24 350 MHz dual channel vertical amplifier for 7000 series oscilloscopes. 5mV to 5V per/div. 175
TEK 7S11 Sampling unit which accept diffirent types of sampling heads.   pict 190
TEK K212 Oscilloscope cart. Fits TEK 2400, TDS series and many other types of equipment. 195
TEK 11A34 Vertical amp pluig-in for 11XXX and DSA series oscilloscopes. 4 channel 350
TEK 11A71 Vertical amp pluig-in for 11XXX and DSA series oscilloscopes. 250
HP OSCILLSCOPE PROBES: HP 10441A, 10300A, 10350A, 10390A
TOO MANY OTHER PROBE TYPES TO LIST,  PLEASE  EMAIL YOUR REQUIREMENTS
Fluke VP190 200MHz, Oscilloscope probe with accesories. New with complete set of accesories.       95
HP 54701A 2.5GHz Active probe with complete set of accesories. Pic  Available w/o accesories for $275     495
LeCroy PP006 500 MHz, 10MOhm, General purpose oscillscope probe. Can be used with any scope. New     190
Link Instruments ADF25A High voltage differential probe. 20MHz,  1000V rms. Works with any oscilloscope. Full specs Retai price: $325 195
TEK AM503 Current probe amplifier. For TEK A6302, A6303 probes. SOLD

    250

TEK AM503A Current probe amplifier with TM502A chassi. For TEK A6302, A6303 probes.

   495

TEK A622 Current probe AC/DC, 100kHz BW, 50mA-50A max. Works with DMM's and oscilloscopes

   495

TEK A6302 Current probe AC/DC, 50MHz BW, 20A max. 1mA sensitivity. AM503A amplifier available separately. SOLD

   595

TEK P2200 200MHz  x1/x10 passive probe  for any oscilloscope. New with complete set of accesories      75
TEK P2220 200MHz  x1/x10 passive probe  for any oscilloscope. New with complete set of accesories       85
TEK P5100 100MHz  x100 High voltage probe. Complete with accesories. 01-0225     395
TEK P5200 High voltage differential probe. 25MHz, 1300V, 10MOhm, 4.7pF input. x50/x500 attenuation. With power supply and clips     595
TEK P6046 Differential probe. DC-100MHz. 2mV sensitivity. Works with any oscilloscope. All accesories. Sold

    250

TEK P6109 150 MHz  probe, Rugged modular construction. 11.8pF. For any oscilloscope. Accessories incuded       85
TEK P6015 HV probe. 40kV max. measurment. Works with any oscilloscope.  Freshly charged     450
TEK P6015A HV probe. Up to 40kV, 75MHz measurments on any o'scope.   New condition. Complete kit with protective case.     995
TEK P6130 250 MHz probe, 10.8pF, x10, 1.5m long. For any oscilloscope       95
TEK P6133 150 MHz probe, 11.4pF, x10, 1.3 or 2.0m long. For any oscilloscope       85
TEK P6138 400 MHz general purpose oscilloscope probe for 1MOhm oscilloscope inputs, x10. With standard accesories     250
TEK P6139 500 MHz general purpose oscilloscope probe  for 1MOhm oscilloscope inputs, x10. With standard accesories      295
TEK P6562 SMT oscilloscope probe. 350MHz BW, x10 attenuation. With accesories and storage case     175
TEK P6201 900MHz FET probe for 50 Ohm or 1 MOhm systems. Requires +/-15V power. Accesories. SOLD     295
TEK P6202A 500MHz FET probe for 50 Ohm or 1 MOhm systems. 2pF input capacitance. Dynamic range +/-6.0V ( 60V with external attenuator). 10x attenuation. DC Offset nulling.        250
TEK P6106A 250MHz, x10 oscilloscope probe. With ground lead and Spring Hook tip. Lenght: 2m       75
TEK P6230 1GHz active probe for use with any oscilloscope. Tektronix probe pwr jacks. TEK1101A P/S  required if no jacks available     175
TEK P6243 1GHz active probe. SOLD    250
TEK P6245 1.5GHz active probe. For use with TDS series oscilloscopes. Accesories included. SOLD    490
TEK P6247 1GHz Differential probe. Complete set of accesories included.   For use with TEK TDS series oscilloscopes. 00-0475 SOLD   1650
TEK P6467 High speed probe adapter for the TLA520 series logic analyzers    295
TEK S-3A Sampling head DC- 1GHz with probe. Rin= 100kOhm, <2.3pF. Complete set of accesories.

     250

TEK S-4 Sampling head DC-14GHz for 7S11 or 7S12 ( see above )

395

TEK S-6 Sampling head DC-11.5GHz for 7S11 or 7S12 ( see above )

395

TEK SD-26 Sampling head DC-26.5GHz

650

TEK S-52 Pulse generator head 25pS rise time for 7S11 or 7S12 ( see above )

495

TEK TD100 Data managment computer for the Tektronix TDS series oscilloscope family. Adds hard drive memory storage to TDS scopes

695

TEK TDS3GM GPIB and RS-232 interface for the Tektronix TDS3000 series oscilloscopes. SOLD

295

TEK TDS3GV GPIB, RS-232 interface and VGA port for the Tektronix TDS3000 series oscilloscopes. SOLD

350

TEK 1103 Probe power supply. Use with TEK P6243, P6245, P6248 and other probes with any oscilloscope or spectrum analyzer. sold

495

TEK 067-0484-01 Deskew fixture for the TEK P6246, P6247, P6248 probes.  pic

125

TEK 015-0310-01 Comparator Head for use with Tektronix calibration plug-ins

450

Tektronix 016-1166-00 Rack mount kit for the Tektronix TDS 300 & TDS 400 series oscilloscopes

195

Yokogawa 700988 400MHz, 10MOhm,  x10 oscilloscope probe. 600V max

150

OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!  E-MAIL US

TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511

VARIABLE POWER SUPPLIES, ELECTRONIC LOADS, AC/DC CURRENT AND VOLTAGE SOURCES

MODEL AC POWER SOURCES Price US$
California Instruments  1001T AC power source, 1000 Watt, 100-270VAC, 45Hz -5kHz ,  8000T oscillator  Pic

1500

ELECTRONIC LOADS

AC/DC EL300 Electronic load. 300Wt max. Hi/Low range, small size Pic 390
Kikusui PLZ72W 70Wt, 12A, Static or dynamic mode. Resistive or Current mode, Dual range, Remote. SOLD 350
Kikusui PLZ300W 600Wt, 30A, Static or dynamic mode. Resistive or Current mode, Dual range, Remote 795
Transistor Devices DLP50-60-1000A 1000Wt, 60A, Static or dynamic mode. Three current ranges: 6, 18, 60A. Pic 650
Transistor Devices DLP50-20-100 Electronic load with LCD displays. Hi/Lo range, Constant current or constant voltage mode. Available in a rack of 4 units 250

SINGLE OUTPUT DC LAB POWER SUPPLIES  listed by output voltage rating

Lambda UP6-33 0-6VDC, 0-33A, Programmable power supply. RS-232/485 interface. Compact high efficiency design. Pic 495
Xantrex XFR6-200 0-6V, 0-200A with GPIB (IEEE488) interface option. SOLD 1195
Xantrex XFR7.5-140 0-7.5V, 0-140A. Only 1.5" tall. 1095
Sorensen XTS7-6M5 0-7V, 0-6A with Opt M5 analog programming interface. Const current or voltage mode, 3.5 digit digital displays 175
EMI EMS7.5-75-1-D 0-7.5V, 0-75A, Constant current or voltage mode. Only 1.5" high. Digital high resolution displays. 595
HP 6281A 0-7.5V, 0-5A, Constant current or voltage mode. Add PC interface for $125 (GPIB) 195
Sorensen  XHR7.5-130 0-7.5V, 0-130A, with opt M9B (RS-232C), Constant current or voltage mode. High efficiency, small footprint. 1500
Agilent E3642A 0-8V, 0-5A or 8-20V at 0-2.5A. GPIB, RS-232. NEW EQUIPMENT 695
Sorensen DCS8-125E 0-8V, 0-125A,  Constant current or voltage mode. High efficiency, rack mountable, only 1.5" in height. GPIB available 650
Xantrex XHR7.5-130 0-7.5V, 0-130A, with opt M9B (RS-232C), Constant current or voltage mode. High efficiency, small footprint. 1650
EMS TCR7.5S300 0-7.5V, 0-300A, Constant current or voltage mode. FREE GPIB controller! For use on 190-250VAC lines 1650
Kikusui PAD8-5L 0-8V, 0-5A, Constant current or voltage mode. Small size. Linear design 150
HP E3614A 0-8V, 0-6A, Const. current or voltage mode. OVP. 10mV, 10mA display resolution. Analog remote control,daisy chaining pic sold 195
Agilent 66101A 0-8V, 0-16A, programmable plug-in for the Agilent 66000A mainframe 450
HP 6282A 0-10V, 0-10A Const voltage or Current mode. Add PC interface for $125 (GPIB) 295
EMI EMS10-60-1-D 0-10V, 0-60A, Constant current or voltage mode. Only 1.5" high.  Digital high resolution displays. 495
Lambda LT801-V1 5-12V, 0-100A Adjustable power supply. Const. Voltage or Current modes, Digital display, very compact and light weight. Line voltage: 208-260 VAC 590
Sorensen DCS12-250 0-12V, 250A,  Constant current or voltage mode. High efficiency. Line requirements: Single or 3 phase 190-240VAC. GPIB avail. 1500
Kepco ATE15-3 0-15V, 0-3A Constant current or voltage mode. Remote programming. Fast response Add GPIB interface for $95. 195
Sorensen XTS15-4 0-15V, 0-4A Constant current or voltage mode. Add GPIB interfaces(opt GPIB-M) for $150. 295
Xantrex XTS15-4 0-15V, 0-4A Constant current or voltage mode. Digital display with analog bargraph 295
Sorensen HPD15-20S 0-15V, 0-20A Constant current or voltage mode. Digital display with analog bargraph. pic 450
Xantrex HPD15-20S 0-15V, 0-20A Constant current or voltage mode. Digital display with analog bargraph. pic 450
Lambda LLS6018 0-18V, 0-9A, Const current or voltage mode, digital controls & displays. Small size Simulate solar panel output for inverter testing 495
HP 6111A 0-20V, 0-1A. 5 decades of resolution permit setting output voltage with 1mV  accuracy 350
Agilent 6632B 0-20V, 0-5A. Programmable power supply. 4.5 digit resolution. GPIB & RS232 interfaces. Free rack mount kit. 495
Agilent 66332A 0-20V, 0-5A. Programmable power supply. GPIB interface 595
HP 6286A 0-20 VDC, 0-10A, Voltage Regulation 0.01%. Add PC interface for $125 (GPIB). Simulate 120Wt solar panel output for inverter testing 295
HP 6263B 0-20VDC, 0-10A, Voltage Regulation 0.01%. SOLD 450
HP 6642A 0-20VDC, 0-10A, Programmable with 1mV, 1mA setting accuracy, GPIB interface. SOLD 850
HP 6264B 0-20 VDC, 0-20A, Voltage Regulation 0.01%. Add PC interface for $125 (GPIB) Simulate 220Wt solar panel output for inverter testing. (GPIB interface with HP59501A) 450
HP 6284A 0-20V, 0-3A Constant current or voltage mode. Add PC interface for $125 (GPIB) 250
HP 6552A 0-20V, 0-25A New surpus units. Free rack mount kit. Simulate 500Wt solar panel output for inverter testing. Free GPIB interface 995
HP 6033A 0-20V, 0-30A. Autoranging, 240Wt max. GPIB interface. 1250
Agilent 6652A 0-20V, 0-25A. Newer version with Agilent logo. GPIB interface. SOLD 1250
HP 6261B 0-20V, 0-50A, Linear, Const. voltage or current. 115VAC (opt 26), 10 turn V/A pots (opt 9). GPIB interface with HP59501A 690
Lambda LGSF24 24V, 41Amp, LED readout for V & A. Model # LGS-F-24-0V-R 275
HP 6011A 0-20V, 0-120A, Constant voltage or current modes. (GPIB interface with HP59501A) SOLD 1350
Power Ten 4600D-20125 0-20V, 0-125A, LCD displays, Const current or voltage mode. Line requirements: 190-253VAC sinlge or 3 phase 950
HP 6215A 0-25V, 0-400 mA. Const voltage mode. 1mV ripple,  size: 5.25x3.25x8"  Fine V  adj.  Pic 65
Amrel PPS-1322 0-30V, 0-2V programmable power supply. 1mV, 1mA meter resolution, GPIB interface 195
B&K 1670A 0-30V, 0-3A, 5V @ 0.5A, 12V @ 0.5A Digital V & A readouts. IN STOCK. iii 150
Fluke PM2811 0-30V, 0-10A, 60Wt max., GPIB programmable. 450
Xantrex HPD30-10 0-30V, 0-10A. Digital V & A readouts. IN STOCK. Optional GPIB interface is available. SOLD 550
EMS ATR250-1 0-32V, 0-25A  Autoranging power supply. 0-8V  max current:  25A, 8-18V max current 12A, 18V-32A mac current 8A   275
HP E3616A 0-35V, 0-1.7A  Digital displays with 10mV & 100uA resolution . SOLD 295
Agilent  E3616A 0-35V, 0-1.7A  Digital displays with 10mV & 100uA resolution  295
Kikusui PAD35-5 0-35V, 0-5A  Compact size, Remote control. Master/slave mode with tracking. Pic  add GPIB for $125 250
HP 6334B 0-36V, 0-10A, Constant current or   voltage, Only 3" high. Volt and amp meter 350
HP 6104A 0-40V @1A  or  2A from 0 to 20V. Hi resolution.   Constant voltage or current mode. pic 150
B&K 1743 0-35V, 0-6A. NEW IN A BOX.  V & I Digital readouts with 1mA, 10mV resolution. pic 295
Kenwood PD35-20D 0-35V, 0-20A  Digital displays, constant current or voltage modes. Linear design with extremely quiet output. Pic 650
Lambda LP-412A-FM 0-40V, 0-1A lab power supply, constant current or constant voltage mode, Separate meters for V and A. Low noise and low ripple. 75
Lambda LP-522FM 0-40V, 0-2A lab power supply, constant current or constant voltage modes, Analog meters for V and A. Small size. Low noise and low ripple. Cosmetically imperfect.  Pic 120
Lambda LP-532FM 0-40V, 0-3A lab power supply, constant current or constant voltage modes, analog meters for V and A. Low noise and low ripple. Line regulation: 0.01%  180
Lambda LQ-532 0-40V, 0-5A. Digital display. Constant current or constant voltage mode. Remote control capability 295
HP 6200B 0-40 V, 0-0.75A, or 0-20V at 0-1.5A.  Constant voltage or current. Regulation: 0.01%.

175

HP 6266B 0-40 V, 0-5A, Constant voltage or current. Regulation: 0.01%. Add PC interface for $125 (GPIB) Pic

285

HP 6291A 0-40 V, 0-5A, Constant voltage or current. Regulation 0.01%. Add PC interface for $125 (GPIB) Pic

285

EMS ESS-40-25 0-40V, 0-25A, Constant voltage or current mode. LCD displays, 1.5" height. (add GPIB for $100)

790

HP 6434B 0-40V, 0-25 Amp, Const. current or voltage modes. (GPIB interface with HP59501A)  SOLD 590
HP 6268B 0-40V, 0-30A, Constant voltage/constant  current mode. Regulation 0.01%. opt 26 & 28 avail. (GPIB interface with HP59501A)

750

HP 6269B 0-40V, 0-50 A, Low use, Excellent condtion. Regulation 0.01%. Opt. 40. 208VAC or 230VAC input SOLD

850

EMI EMS40-125-2-D 0-40V, 0-125A, Constant current or voltage mode. Digital high resolution. Requires 3 phase AC. 1150
B&K Precision 1601 0-50V, 0 to 0.5 A or 0 to 20V, 0-2A,  0.1% Regulation, Constant voltage mode with current limiting. Analog Voltage and Current meters. Automatic overcurrent shutoff. Pic 75
Prism PPS 50S-1 0-50V, 0-1A,  Programmable power supply. GPIB interface. High resolutions (4 digit) Pic 175
HP 6633A 0-50V, 0-2A,   High resolutions (4 digit), GPIB interface Pic SOLD 595
HP 6002A 0-50V, 0-10A, 200Wt, Constant current or voltage mode. GPIB programmable. Pic SOLD 495
Sorensen DCS50-40M16 0-50V, 0-40A,  1 or 3 phase  AC input, current monitor output.      490
Lambda LQ-523 0-60 V, 0-900 mA, digital V/A display, CV/CC mode, small size. Remote analog programming.Pic

120

Sorensen XTS60-1 0-60V, 0-1A Constant current or voltage mode. Digital display with analog bargraph 350
Xantrex XTS60-1 0-60V, 0-1A Constant current or voltage mode. Digital display with analog bargraph 350
Sorensen QRD60-1.5 0-60V, 0-1.5A Constant current or voltage mode. 150
HP 6024A 0-60V, 0-10A, 200Wt max. Automatic crossover. Const voltage or current mode. 90day warranty. sold 450
HP 6012A 0-60V, 0-50A, 1000Wt. 90day warranty. 1195
HP 6032A 0-60V, 0-50A, 1000Wt. Newer serial number. GPIB interface. SOLD 1850
HP 6206B 0-60V @ 0.5A or 0-30 @ 1A dual range. 0.01% regulation, 200uV rms ripple 170
HP 6217B 0-60V, 0-250mA. Const  voltage mod.. Very small;   5.25"x3.25"x8". Fine voltage adj. controls 75
HP 6218A 0-60V, 0-250mA. Const  voltage  or current modes. Very small;   5.25"x3.25"x8". 85
Sorensen XTS60-1 0-60V, 0-1A Dual output. Constant current or voltage mode. Digital display with analog bargraph. Pic 295
Xantrex XTS60-1 0-60V, 0-1A  Dual output. Constant current or voltage mode. Digital display with analog bargraph. Pic 295
HP 6294A 0-60V, 0-1A Constant current or constant voltage mode. 0.01% regulation. Linear. 175
HP 6296A 0-60V, 0-3A Constant current or constant voltage mode. 0.01% regulation. Linear. 350
Lambda LQ-533 0-60V, 0-3.3A. Digital display. Constant current or constant voltage mode. 0.01% regulation. 350
Agilent 6544A 0-60V, 0-3.5A. Late manufacturing date (s/n SG40XXXX) 850
Sorensen LH60-6 0-60V, 0-6A. Digital displays, remote sensing, const current or voltage mode. 450
HP 6034L 0-60V, 0-10A, 200Watt max., Computer programmable (GPIB)  pic 650
Power Ten 3300D-6010 0-60V, 0-10A, LCD displays, Height:  1.5" Const current or voltage mode. pic 695
HP 6274B 0-60V, 0-15A, Const voltage or Current mode.  Analog remote programming. Latest serial number

 595

Kepco JQE75-8M 0 to 75V, 0 to 8A, Constant voltage or current mode. High resolution V/I control. List price $2095 395
HP 6116A 0-100V, 0.2A Precision voltage setting with 0.1%+1mV accy, 200uV resolution. 290
Kikusui PAB110-0.6 0-110V, 0-0.6A.  CV or CC mode. LCD readouts. Analog programming. 00-0010 350
HP 6115A 0-100V, 0.8A max  Output voltage control with 4 digit accuracy.  450
Agilent E3612A 0-120V, 500mA below 60V, 250mA above 60V. Constant voltage or current. 3.5 digit displays. SOLD 275
Agilent 6645A 0-120V, 0-1.5A. 3.5 digit setting accuracy. GPIB interface. Digital and analog front panel controls 795
Sorensen DCS150-7E 0-150V, 7A,  Constant current or voltage mode. High efficiency, rack mountable, only 1.5" in height. GPIB interface is available 1500
Power Ten 4600D-15033 0-150V, 0-33A, LCD displays, Const current or voltage mode. Line requirements: 190-253VAC single or 3 phase 1350
Sorensen DCR150-18B 0-150V, 0-18A,  Constant current or voltage mode. IN STOCK! 1950
Kikusui PAD160-7L 0-160V, 0-7A.  Constant duty power supply. CV or CC mode. Digital amp meter 1295
Kepco ABC-200 0-200V, 0-150mA. 6.3VAC, Grid control output. CV or CC mode 175
Biorad 200/2.0 0-200V, 0-2A. 200Wt max. CV or CC mode. Programmable On/Off time. Pic 375
Kikusui PAB250-0.25 0-250V, 0-250mA.  CV or CC mode. LCD readout. Analog signal  remote programming 350
Sorensen XT250-0.25 0-250V, 0-250mA. Constant voltage or current  mode. 3 1/2 digit digital meters 395
Xantrex XTS250-0.25 0-250V, 0-250mA. Constant voltage or current  mode. 3 1/2 digit digital meters 395
HP 6209B 0-320V, 0-100mA. Constant voltage or current  mode. SOLD 350
Kepco HB4A 0-325V, in 5 ranges. 400mA. Constant voltage mode only. 195
Sorensen DCR600-4.5B 0-600V, 0-4.5A. CV or CC mode. High resolution controls.  Can be remotely controlled with HP 59501A GPIB programmer 1500
GR 1265A 0 to 400V, 0 to 5A (200Wt max) Const. voltage or constant current mode. Line regulation 0.2%. pic 490
Agilent G3170-80018 Bipolar HED power supply for the Agilent 5975 GC systems 1250
Kepco BOP1000M 0 to +/-1000V, 40mA Bipolar DC Power supply and AC amplifier. More info pic GPIB interface with HP59501A 950
ISCO 494 0-2000V, 0-200mA ( 100mA @ 2000V )Constant voltage, current or power mode Electrophoresis power supply Pic 290
Bertan 105-03R 3kV, 333mA,  Constant current or voltage mode. Reversable polarity, digital display, remote analog programming.  1500
Bertan 105-30R 30kV, 33mA,  Constant current or voltage mode. digital display, high resolution V/I controls, remote analog programming.  call
Spellman SA15P4 0-15kV, 267mA,  Constant current or voltage mode. Digital LCD displays. Requires: 208VAC 3 Phase. SA15P4/208/3PH. Info 2500

DUAL OUTPUT LAB POWER SUPPLIES

HP 6621A Two outputs 0-20VDC@ 0-2A or 0-7V @ 0-10A, GPIB interface 650
HP 6622A Two outputs 0-20VDC@ 0-4A or 0-50V @ 0-2A, GPIB interface 895
HP 6205C 0-20V @ 0.6A, 0-40V @0.3A, 0-80V @ 0.3A, Auto series or parallel mode doubles output voltage or current. SOLD 250
HP 6227B 0-25V @ 0-2A. Dual output, CV/CC,Tracking mode. Low noise. Linear construction 295
HP 6234A 0-25V @ 0.2A dual or 0-50V single @ 0.2A. Small size: 3.64"x6.17"x8.25". Late s/n 195
HP 6253A 0-20 @ 0-3A ea., 0.01% regulation, 200uV rms ripple. Constant voltage or current mode. Double output rating 295
HP 6255A 0-40 @ 0-1.5A ea. 0.01% regulation, 200uV rms ripple. Const. voltage or current modes. Double output rating 295
HP 6621A 0-7V, 0-10A or 0-20V, 0-2A System power supply. Digital controls, GPIB/IEEE-488    1200
Tektronix PS501-1 Precision power supply. 0-20 V with 10mV resolution setting 0-400mA, 5VDC @ 1A fixed output. For TEK TM series chassies 195
Topward TPS-3000 Dual 0-30V, 0-2A output with tracking function. Four separate meters for simultaneous monitoring of voltage and current  275
Topward TPS-4000 2 of  0-30V @ 6A each. Four analog meters for simultaneous monitoring of voltage & current, Tracking mode,  Picture 295
Xantrex 6060D 0-60 @ 0-1A dual output.. Same as two Xantrex XTS60-1 mounted in one chassi. Pic  295

TRIPPLE & QUAD OUTPUT LAB POWER SUPPLIES

Agilent 66000A Programmable power supply mainframe. Up to 8 independent outputs 8-120VDC. SOLD 495
Amrel PDS series Programmable power supply mainframe. Up to 4 independent linear outputs controllable via computer interface or front panel. Pic 795
Amrel PDS4004 Programmable power supply mainframe.  4 independent linear 0-8V, 0-7A power supply outputs. Programmable via IEEE488, RS-232 or front panel. 5 digit resolution setting amd read back resolution. Can be rackmounted in 19" cabinet.   Info Pic 1295
B&K Precision 1660 2x 0-30V @ 2A ea. and  4-6.5V @ 5A. Tracking mode. Series/Parallel LED displays. Pic  295
HP E3631A 0-6V @ 5A, 2x 0-25V  @ 0-1A each. Tracking mode. GPIB, RS-232 fully programmable over computer interface. SOLD 850
HP 6236B 0-6V @ 2.5A  and two 0-20V outputs at 0.5A each. Tracking mode. HP quality. SOLD 350
HP 6237B 0-18V @ 1A  and two 0-20V outputs at 0.5A each. Tracking mode. HP quality. 350
Agilent 6624A Four output programmable power supply. Output Ratings (2 outputs each) 0 to 7 V, 0 to 5 A; 0 to 20 V, 0 to 2 A.  SOLD 750
Lambda LPT-7202FM 2 of 0-20V @ 1.5A each and  0-7V @ 5A. Separate volt and amp meters for each output. 275
Leader LPS-152 2 of  0-25V @ 1A and  0-6V @ 5A. Tracking mode. <3mV p-pk  ripple   Pic  250
Philips PM2813 3 of 60V @ 5A each, 60Wt maximum. Programmable power supply with GPIB interface. PM2813/113. IN STOCK. 895
Power Design TP340 2 of 0-32V @ 1A each and 0-6V @ 5A or 0-15V @ 2.5A Tracking mode. This P/S will not cause IC lockup on power up. 195
Power Design TP343 2 of  0-18V @ 2A each and 0-6V @ 5A or 0-15V @ 2.5A Tracking mode. This P/S will not cause IC lockup on power up. 195
Sorensen LT18-5 2 of  0-18V @ 5A each, 5V @ 3A. 18V outputs can be used in series to double the voltage to 36V, or in parallel to get 10A. Info 350
Systron Donner TL8-3 2 of 0-32 @ 1A each,  0-8V @ 3A. Separate meters for each output. 295
Tektronix  PS503A 2 of 0-20V @ 0-1A max and  5V @ 1A. Tracking mode. For TEK TM500/5000 chassis only  150
Topward 6303D 2 of  0-30V @ 6chA ea., 5V @ 5A.  Four  analog meters, Tracking mode, CV or CC mode. SOLD 350
Topward 6606D 2 of  0-60V @ 3A ea., 5V @ 5A.  Four  digital meters, Tracking mode, CV or CC mode. 475

CURRENT SOURCES

HP 4141B Programmable DC source/monitor for use in HP4062 semiconductor analysis systems 2500
HP 6177B  DC current source 0 to 500mA, 0-50V. 500uA resolution, 5mA, 50mA, 500mA range. pic 395
HP 6186B  0 to 100mA, 0-300V. 3 ranges; 1mA, 10mA, 100mA  pic 950
Keithley 261 Precision current source with the range  from mA to pA.   3 decades of resolution. 650
Keithley 228 Programmable current/voltage source. 4 quadrant operation, +/-100V, +/-1A. Pic  GPIB port 950

OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!E-MAIL US

TO PLACE an ORDER or  WITH TECHNICAL QUESTIONS, PLEASE CALL 650-938-5511

TELECOMMUNICATION TEST EQUIPMENT:  LAN,   TELEPHONE,  CABLE

MODEL DESCRIPTION Price US$
Acterna 8630 Protocol analyzer GSM, GPRS, CDMA, UMTS, V5, ISDN, SS#7. Operating system not loaded! E1/T1 interface available 950
Acterna 2262/90.1 Acterna E1/T1 Module for the Acterna 8630 analyzer 1650
Acterna ANT-20SE With STM-64 and OC-192 Interface module. Contact us for the list of installed options. Configuration Info  JF 6500
Acterna TTC 310 Communication Analyzer. Incl. opt S. IN STOCK. Options are available separately 650
Adtech AX/4000 10GB Ethernet test system. Incl. 16slot chassi, 401427 control module, 403100 Generator/Analyzer, 403335  Test interface 7950
Agilent J2904A Internet Advisor ISDN module. New in a box with software and cables 395
American Reliance AR-180T Transmission loss tester. Handheld tester with DMM function. Combines a 0dBm/-13dBm transmitter and AC voltmeter with dB scale. Olso measures DCV, and Ohms  150
Ameritec AM-8A PCM/VF Call analyzer. Computer interface. Runs on AC or a built in rechargable battery pic 450
B&K 1050 Universal telephone analyzer. Test telephones, faxes, modems, answ mach. etc. More info 450
Consultronics DLS200 Wireline simulator  for DSL and ISDN with Impairment generator option. 10 standard test loops plus   crosstalk, impulse, powerline and  longitudal noise impairments  pic 950
Fluke Microscan Pro Network-Cable tester. Locate short, open, measure cable length, network activity. Unused pic 250
Fluke 686 Network & Cable tester. Analyze data errors as well as wiring problems with Ethernet and Token ring networks up to 100MHz 1450
HP J2301B Protocol analyzer opt 220, 220, 221. DS-3/E3 and Relay,ISDN,X.25,HDLC,SDL. RS232, RS449 & more. pic 850
HP 28687A Wiring Tester. Test any wiring harness for continuity and signal integrity (attenuation, crosstalk, burst). Tests 24 pairs simultaneously. Loopback adapters included. 795
HP 3776B PCM Terminal Test Set with Opt 003 and Opt 001 available 490
HP 3779D Primary Multiplexer Analyzer for Bell/CCITT/Japanese networks 490
HP 37701B T1 Datcomm tester. ASYNC, SYNC, BERT. Ligthweight, Battery option available 1490
HP E4200B Broadband Test System modules; PDH, Line Interface Modules, Cell processors call
HP E4480A SONET Test Set. STS-1, STS-3, STS-3c, DS3. Pic IN STOCK. 850
HP E4480A SONET Test Set. opt: STS-1, DS3, DS1, DS0, Jitter for STS1,DS1,DS3. Pic IN STOCK 1395
HP E4480A SONET Test Set. opt: ST1, STS-3, STS-3C, DS0, DS1, DS3, V1.5, FT1, Jitter: STS1, DS3, DS1, DS3 Pulse Mask  2950
HP MTS 156 SONET Test Set. STS-1, STS-3, STS-3c, DS3. IN STOCK 850
HP MTS 156 SONET Test Set. opt: STS-1, DS3, DS1, DS0, Jitter for STS1,DS1,DS3. IN STOCK 1395
HP MTS 156 SONET Test Set. opt: ST1, STS-3, STS-3C, DS0, DS1, DS3, V1.5, FT1, Jitter: STS1, DS3, DS1, DS3 Pulse Mask  2950
HP 3784A Digital communication analyzer. With Option 002. 495
HP 4934A Transmission Impairment and Noise Measurment test set  available with opt 001 Rechargable batt or RS-232 interface 950
HP 4935A Transmission Impairment and Noise Measurment test set ( TIMS). 110kHz. Batt. opt.  +$150 595
HP 4944A Transmission Impairment and Noise Measurment test set ( TIMS). 650
HP 4945A Transmission Impairment and Noise Measurment test set ( TIMS). 110kHz max freq. 650
HP 4951C Portable protocol analyzer 19.2  kbps max. Floppy disk to store setups and  data.  Supports HDLC, SDLC, SNA, ISDN, CCITT X.25, Async/Sync/Bysync, IPARS, DDCMP.  SOLD       350
HP 4952A Portable protocol analyzer 64  kbps max. Floppy Drive.  Supports HDLC, SDLC, SNA, ISDN, CCITT X.25, Async/Sync/Bysync, IPARS, DDCMP.   Option 002 is available.  pic       495
HP 4954A Portable protocol analyzer 256kbps max. Opt 001. NEW EQUIPMENT.  Interface Pods are available       795
HP 4957A Portable protocol analyzer 64  kbps max. Floppy Drive. Supports HDLC, SDLC, SNA, ISDN, CCITT X.25, Async/Sync/Bysync, IPARS, DDCMP, V.35. SOLD       650
HP 18135A RS-232C Interface pod with Analyzer and DUT "Y" cable for HP4954A and other models       250
HP 18136A RS-449 Interface pod with Analyzer and DUT "Y" cable for HP4954A and other models       250
HP 18160A V-35  interface pod for  HP 4951A/B/C, HP4952A and  4957A       180
HP 18173A RS-232C interface pod for  HP 4951A/B/C, HP4952A and 4957A       150
HP 18179A RS-232C interface pod for  HP 4951A/B/C, HP4952A and  4957A       150
HP 18180A RS-449 and RS232C interface pod for  HP 4951A/B/C , HP4952A and HP4957A      300
Loral SBA100F Data analyzer for Mil-Std-1533 bus. SOLD    6500
Netcom X-1000 Fast Ethernet tester/simulator/analyzer for IEEE802.3. picture 350
Netcom ET-1000 Ethernet simulator for IEEE802.3 Ethernet standard. picture 350
Netcom JET-210 Jitter generator/standard for IEEE802.3 Ethernet standard 650
Netcom JET-211 Jitter generator/standard for IEEE802.3 Ethernet standard 650
Spirent AX/4000 10GB Ethernet test system. Incl. 16slot chassi, 401427 control module, 403100 Generator/Analyzer, 403335  Test interface 2950
Spirent 403100 10GB Ethernet test system.  403100 Generator/Analyzer, 403335  Test interface 2950
Spirent 403335 10GB Ethernet test system.  403100 Generator/Analyzer, 403335  Test interface 2950
Spirent DLS200 Wireline simulator  for DSL and ISDN with Impairment generator option. 10 standard test loops plus crosstalk, impulse, powerline and  longitudal noise impairments  pic pic 950
Spirent SMB-1000 Network tester mainframe.  We have in stock wide variety of plug-in cards for this tester 500
Spirent SMB-2000 Network tester mainframe.  We have in stock wide variety of plug-in cards for this tester 1200
Spirent SMB1000 Network tester mainframe.  We have in stock wide variety of plug-in cards for this tester 500
Spirent SMB2000 Network tester mainframe.  We have in stock wide variety of plug-in cards for this tester 1200
Spirent SE-6205 Interface card for Smartbits 1000 and 2000 systems. Quantity discount. 250
Spirent ST-6405 Interface card for Smartbits 1000 and 2000 systems. Quantity discount. 195
Spirent SX-7205 Interface card for Smartbits 1000 and 2000 systems. Quantity discount. 350
Spirent SX-7405 Interface card for Smartbits 1000 and 2000 systems. Quantity discount. 450
T-Com 324A T1 hand-held tester. Built in generator with BERT functions. Non intrusive DS1 monitoring and HDSL testing. More info 495
Telebyte 453 Transmission line simulator. From 500 to 18500 feet. Remote control capability 350
TEKTRONIX  834 Serial protocol analyzer on RS-232, CCITT V.24 interfaces up to 19.2KBaud.   Synchronous, Asynchronous, and HDLC modes, BERT/BLERT, ECHO and REPEAT. Small size. Support for other protocols  available separately pic 190
Tektronix GB1400 GigaBert Tester and Generator. Computer interface. Internal or external clock mode 2300
Tektronix TC1000 Portable T1/PCM and BERT analyzer.  Printer port, RS-232, Floppy drive 190
Teltone TLS-4 Telephone line simulator. 4 simulated phone lines with 2 simultaneous independent conversations. Add your own audio signal. Test dialing, ringing, ringback, busy tone response and much more. full specs 350
Teltone TLS-4A-01 Telephone line simulator. 4 simulated phone lines with 2 simultaneous independent conversations. Add your own audio signal. Test dialing, ringing, ringback, busy tone response and much more. full specs 350
TTC 310 Communication Analyzer.  IN STOCK. Options are available separately. SOLD 650
TTC 2000 Bit Error Analyzer. Up to 64 kBaud. With RS-232 interface. 290
TTC 4000 Communication analyzer. Two interface slots allow mixing of different test modules in one analyzer. 495
TTC 40200 RS-449 interface for the  TTC 4000, 6000 analyzers 350
TTC 40202 V.35 Interface module for TTC 4000, 6000 analyzers 250
TTC 40895 T1 channel monitor for TTC209 295
TTC 41440 T1/FT1 interface for the TTC6000 analyzer. Unused condition 250
TTC 41704-01 V35 inteface plug-in for TTC 6000 295
TTC 6000A Communication analyzer. Opt 6005 and plug-ins for different   protocols are available.  SOLD 950
Spirent XPS/26-R24 Programmable Transmission Line simutaltor. Up to 15500 feet, GPIB interface. Rev. 6 450
WG ANT-20SE With  STM-64 and OC-192 Inteface module. Contact us for the list of installed options. Configuration Info JF 6500
WG ANT20SE With  STM-64 and OC-192 Inteface module. Contact us for the list of installed options. Configuration Info JF 6500
WG 2262/90.1 Acterna E1/T1 Module for the Acterna 8630 analyzer 1650
WG PKN-1 Transmission Line simutaltor. 10kHz to 10MHz, 75Ohm impedance. BNC connectors 350
WG PA-20 Portable PCM channel analyzer. Complete with accesories and carring case. pic 1850
WG BN9305/00.17 Wan Analyzer module for DA-30 analyzer 750
WG BN7511/00.18 ISDN BRA Line interface for DA-30 analyzer 490
OUR INVENTORY CHANGES EVERY WEEK, CHECK BACK SOON!    E-MAIL US

UP TO 1 YEAR WARRANTY and 10 DAYS MONEY BACK  details

NEED MORE INFO?  We can email picture or a spec sheet
Back To EquipTek Labs Home Page           E-MAIL US
  Call:  650 938-5511  From 9 to 6 Pacific Standard Time

Looking for Scientific and Chemical Lab Equipment? Click Here
